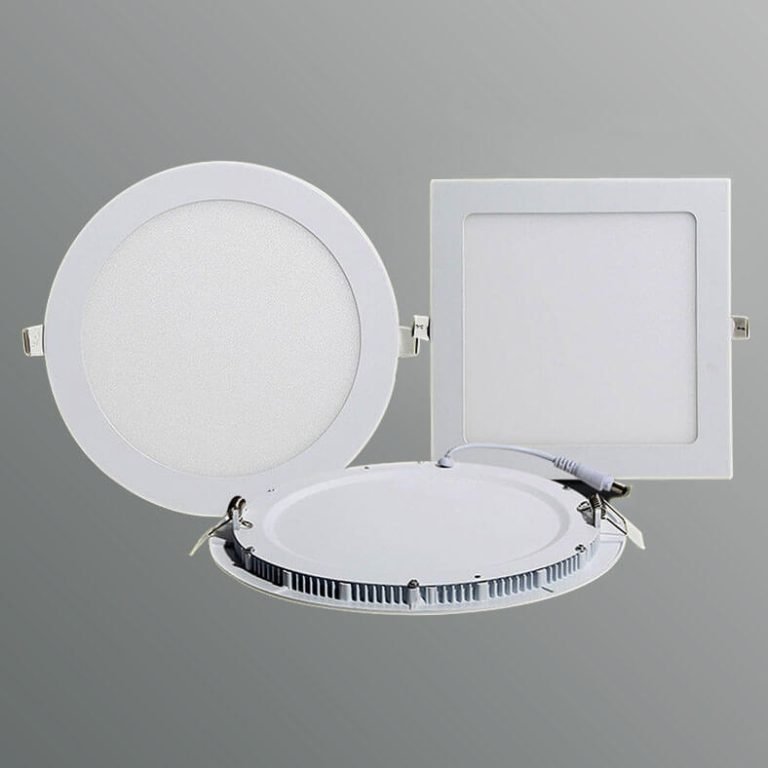

12V LED Flat Panel Light

The 12V LED Flat Panel Light is an energy-efficient and modern lighting solution, perfect for various indoor settings such as yachts, caravans, and elevators. This sleek and stylish light fixture offers a uniform and glare-free illumination, ensuring a comfortable and visually pleasing environment.

Features:

  • Thickness: 20 mm
  • Mosquito and Dust Prevention
  • IP Rating: IP 20 or IP 65 Waterproof
  • Beam Angle: 110 Degree (standard)
  • Surge 2.0 KV,Connector Safe and Reliable Design
  • Color Temperature: 3000K/4500K/5500K/6500K,RGB is available
  • Low voltage: The light runs on 12V DC power supply, making it safe.
  • Uniform light distribution: Light guide technology provides a soft and evenly distributed light, reducing glare and shadow.
  • Slim and lightweight design: The ultra-thin profile allows for easy installation in suspended, recessed, or surface-mounted applications.

12V LED Flat Panel Light Material

  • AL Frame(6063 Al)+LED Beads(SMD2835)+ PCB(high thermal conductivity aluminum substrate)
  • Diffuser Plate: PC/ Acrylic (PMMA) or PS is optional
  • Light Guide Plate: Optical Grade Acrylic/PC Sheet.
  • Reflective Sheet: High Reflex PET  Sheet
  • Back Plate: Metal Material, 2.5mm-3mm thickness.

Note: DC 12V never goes directly to 110V or 220V AC voltage!

12v led panel light 02

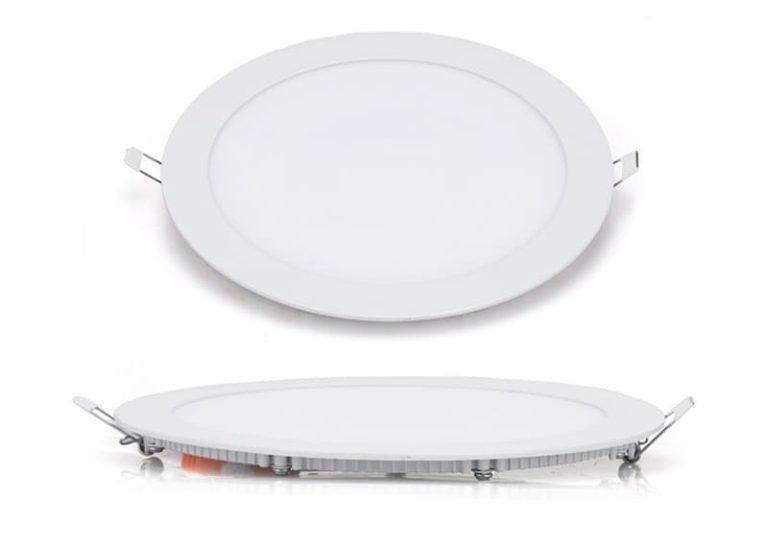

Circular 12V LED Flat Panel Light

  • Structure: Al Frame+Diffuser Plate+Light Guide Plate+Reflective Paper+Back Plate
  • Super energy saving; save up to 70-80% more power than fluorescent tubes
  • High brightness SMD2835, top quality brand LED chips;
  • Beam Angle: 110 or 150 degree is available;
  • Flicker-free, support dimming function;
  • Color Temperature: 2800 K~6500 K or RGB;
  • Long lifetime of more than 5 years;
  • Instant On/off;
  • Edge-lit Design;
  • No Dark Area;
  • Anti-yellow;
12v led flat panel light

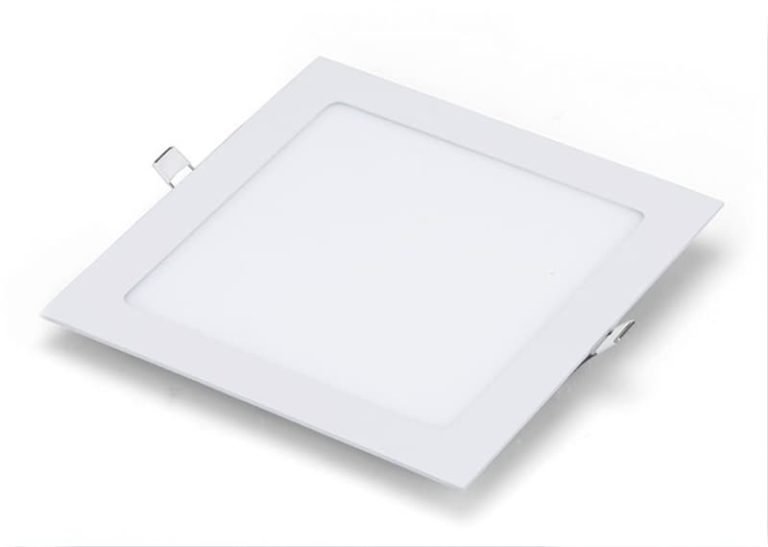

Square 12V LED Flat Panel Light

  • Structure: Al Frame+Diffuser Plate+Light Guide Plate+Reflective Paper+Back Plate
  • Super energy saving; save up to 70-80% more power than fluorescent tubes
  • High brightness SMD2835, top quality brand LED chips;
  • Beam Angle: 110 or 150 degree is available;
  • Flicker-free, support dimming function;
  • Color Temperature: 2800 K~6500 K or RGB;
  • Long lifetime of more than 5 years;
  • Instant On/off;
  • Edge-lit Design;
  • No Dark Area;
  • Anti-yellow;
12v led flat panel light

The Construction of 12V LED Flat Panel Light

DC 12V led panel light inner

12 Volt DC LED Panel Light consists of the following accessories:

  1. Back Plate
  2. Reflective Sheet
  3. Light Guide Plate
  4. Diffuser Plate
  5. LED Beads+ PCB
  6. AL Frame

This structure is an edge-lit LED panel with ultra-thin thickness (20mm).

Installation of DC 12V LED panel light

LED panel light is easy to install. It has several different installations: built-in installation, ceiling-mounted installation(exposed installation), and suspended installation.

Built-in and ceiling-mounted installations are ideal for most environments, such as hospitals, residences, and office areas.

Suspended installation is more commonly used in large space environments such as bars, restaurants, and stations.

12v led panel light series 04

High Brightness +High CRI+ Flicker Free SMD2835

Best 12 Volt LED Flat Panel Lights for Your Next Project

led panel light 30 x 120 cm application
12v led panel light series 02
led panel light 30 x 60 cm application 02

Visit More Featured LED Panel Lights

Explore More Features of 12V LED Flat Panel Light

LED Panel Light

LED panel lights
  • Light Efficiency >110 lm/w ( high bright series can be >150 lm/w)
  • Life Time>50,000 hours
  • Perfect luminous uniformity

Traditional Grille Light

grille light
  • Light Efficiency only 50-60 lm/w
  • Life Time<8000 hours
  • Poor luminous uniformity

May Help Your Purchasing

What is a 12V LED flat panel light?

A 12V LED flat panel light is a type of lighting fixture that uses low voltage 12-volt power supply to produce bright and energy-efficient light.

It consists of Al Frame, Diffuser Plate, Light Guide Plate, Reflective Paper, Back Plate and LED beads arraged on a PCB, which provides uniform and bright illumination.

These low-volt panel lights are commonly used in various applications, such as residential, commercial, and industrial spaces, as well as in vehicles like RVs and boats.

How long do 12V LED flat panel lights last?

On average, 12V LED flat panel lights have a lifespan of 50,000 hours, which is significantly longer than traditional lighting options. And We offer a 5-year warranty.

Are these LED flat panel lights easy to install?

Yes, 12V LED flat panel lights are relatively easy to install as they can be mounted on various surfaces, including ceilings, walls, and even suspended from the ceiling.

Do 12V LED flat panel lights require any maintenance?

No, 12V LED flat panel lights do not require any maintenance as they do not have any moving parts and have a long lifespan. However, it is essential to clean them regularly to ensure optimal performance.

What are some key parameters of 12 volt LED flat panel lights?

The below parameters can help determine the lights' overall efficiency, durability, and suitability for your specific lighting needs. Here are some important specifications to pay attention to:

Wattage:

Wattage indicates the power consumption of LED panel lights. Generally speaking, a 9W LED panel light is equivalent to the brightness of a traditional incandescent lamp of 60W. The recommended applicable reference area is around 6 square meters.

Voltage:

Please note that 12V LED panel lights should never go directly to 110V or 220V AC voltage. They are specifically designed for use with 12V DC power supplies for applications such as vehicles, boats, or solar power.

Light Efficiency:

Light efficiency, measured in lumens per watt (lm/W), indicates how effectively the LED panel light converts electrical power into visible light. Higher light efficiency means more light output for the given power input, resulting in greater energy savings and brighter illumination.

Color Temperature:

Color temperature refers to the perceived "warmth" or "coolness" of the light emitted by the LED panel. It is measured in Kelvin (K). Different color temperatures create different atmospheres, with lower values (e.g., 2700K-3000K) producing warm, cozy light, and higher values (e.g., 5000K-6500K) providing cool, daylight-like illumination. Choose a color temperature that suits the intended environment and desired ambiance.

Color Rendering Index (CRI):

CRI measures how accurately the LED panel light reveals the true colors of objects compared to natural light. It is rated on a scale of 0 to 100, with a higher CRI indicating better color accuracy. For environments where color reproduction is important, such as retail spaces or art galleries, selecting LED panel lights with a high CRI (80 or above) is recommended.

Lifespan:

The lifespan of LED panel lights refers to the expected operating hours before the light output depreciates to a certain percentage (e.g., 70% of initial brightness). A longer lifespan ensures reduced maintenance and replacement costs. Look for LED panel lights with longer lifespans, typically specified in hours (e.g., 50,000 hours or more), to ensure long-lasting performance.

Dimming Capability:

Some LED panel lights offer dimming functionality, allowing you to adjust the brightness level according to your needs and preferences. If the dimming capability is important for your application, check whether the LED panel lights support dimming and the compatibility with dimmer switches or systems.

By considering these key parameters, you can evaluate the quality and performance of 12V LED panel lights more effectively, ensuring that they meet your requirements for efficiency, durability, light output, and color accuracy. For more knowledge on lighting parameters visit this article: https://www.layvikay.com/what-are-the-key-parameters-in-choosing-lighting-fixtures/

What are some smart features of high-end 12V LED panel lights?

High-end 12V LED panel lights often come with additional features that enhance their functionality, customization options, and overall user experience. Here are some common additional features you may find in high-end 12V LED panel lights:

Dimming Capability:

High-end LED panel lights often offer dimming functionality, allowing you to adjust the brightness level according to your specific needs and preferences. This feature provides flexibility in creating different lighting atmospheres and can contribute to energy savings by reducing power consumption when full brightness is not required.

Smart Control and Connectivity:

With advancements in smart lighting technology, high-end LED panel lights may offer smart control options. These lights can be integrated with wireless connectivity protocols such as Wi-Fi or Bluetooth, enabling control through smartphone apps or voice assistants. Smart features may include scheduling, remote control, and integration with smart home automation systems.

Tunable Color Temperature:

Tunable color temperature LED panel lights allow you to adjust the color temperature of the light output. This feature enables you to create dynamic lighting scenarios, ranging from warm white to cool white or RGB color, to suit different activities or times of day. It is often used in spaces where the ability to mimic natural daylight or create a specific ambiance is desired, such as entertainment venues, bars, offices, retail stores, or healthcare facilities.

High Color Rendering Index (CRI):

High-end LED panel lights may offer a higher CRI, typically above 90. A high CRI ensures accurate color representation and enhances the visual appeal of illuminated objects. This feature is particularly important in applications where color accuracy is crucial, such as art galleries, showrooms, or photography studios.

It's important to note that the availability of these additional features may vary depending on the specific model, and customization options offered by us. Please inquiry us for more details.

What are some common applications for 12V DC LED panel lights?

12V DC LED panel lights are versatile lighting fixtures that find applications in various settings. Their low voltage operation makes them particularly suitable for specific environments where 12V DC power sources are available or required. Here are some common applications for 12V LED panel lights:

Vehicle Lighting:

12V LED panel lights are widely used for vehicle interior lighting, including RVs, trains, and other vehicles. They can be used for interior lighting and accent lighting. The low voltage operation makes them compatible with the vehicle's electrical system, eliminating the need for special volt booster equipment.

Marine and Boating:

LED panel lights are well-suited for marine and boating applications due to their low voltage requirement and durability. They can be used for cabin lighting and deck lighting. Their energy efficiency and low-voltage safety make them ideal for marine environments.

Off-Grid Solar Systems:

12V LED panel lights are commonly used in off-grid solar systems, such as cabins, RVs, and remote locations, where a 12-volt battery bank is utilized. They provide efficient and reliable lighting without the need for grid power. These lights can be powered directly by the battery or connected to solar charge controllers.

Camping and Outdoor Lighting:

LED panel lights are popular for camping and outdoor lighting due to their compact size, low power consumption, and portability. They can be used in tents, RV awnings, camping trailers, and other outdoor settings where 12V power sources are available.

Showcase and Display Lighting:

LED panel lights are frequently used for showcase and display lighting in retail stores, museums, art galleries, and exhibitions. Their directional and uniform light output helps highlight products, artworks, or exhibits with enhanced visibility and color accuracy. The low heat emission of LED panel lights also minimizes the risk of damage to sensitive items.

Accent and Decorative Lighting:

LED panel lights are suitable for accent and decorative lighting applications, adding ambiance and visual appeal to residential and commercial spaces. They can be used for cove lighting, under-cabinet lighting, wall washers, and other architectural lighting designs. The versatility of LED panel lights allows for creative and customizable lighting installations.

These are just a few examples of the many applications for 12V LED panel lights. Their versatility, energy efficiency, and low-voltage operation make them suitable for a wide range of lighting needs in different environments.
