12V LED Panel Light

LayviKay 12V LED Panel Light is a stylish and energy-efficient lighting solution. The low-power series is suitable for tight spaces such as yachts, caravans, and elevators. The high-power DC panel lights are perfect for offices, homes, and commercial environments.

The slim and modern design makes these 12-volt LED panel lights ideal for a variety of installations. They can be surface mounted, recessed, or even suspended, giving you the flexibility to use them in different ways to meet your specific lighting needs.

They are available in different sizes and color temperatures. Custom dimming is also available with a color rendering index (CRI) of up to 80+.

Upgrade your lighting with 12V LED panel light and enjoy energy-efficient, long-lasting, high-quality lighting in any space.

12V LED Panel Light Material (Edge-lit series)

  • AL Frame(6063 Al)+LED Beads(SMD2835)+ PCB(high thermal conductivity aluminum substrate)
  • Diffuser Plate: PC/ Acrylic (PMMA) or PS is optional
  • Light Guide Plate: Optical Grade Acrylic/PC Sheet.
  • Reflective Sheet: High Reflex PET  Sheet
  • Back Plate: Metal Material, 2.5mm-3mm thickness.

Note: DC 12V never goes directly to 110V or 220V AC voltage!

12v led panel light 02

Square 12V LED Panel Light

  • Structure:Al Frame+Diffuser Plate+Light Guide Plate+Reflective Paper+Back Plate
  • High brightness SMD2835, top quality brand LED chips;
  • Flicker-free driver, support dimming function
  • Instant on/off; Edge-lit;No dark area;Anti-yellow
  • Beam angle 110 degree(standard);
  • Thickness: 20 mm;
  • Mosquito and dust prevention;
  • Color Temperature: 2800 K~6500 K;
  • Long lifetime of more than 5 years;
  • Surge 2.0 KV, connector safe and reliable design,
  • Easy to install,Suspending & Ceiling mounted & Recessed;
  • Super energy saving; save up to 70-80% more power than fluorescent tubes
12v led panel light 03

Round 12V LED Panel Light

  • Structure:Al Frame+Diffuser Plate+Light Guide Plate+Reflective Paper+Back Plate
  • High brightness SMD2835, top quality brand LED chips;
  • Flicker-free driver, support dimming function
  • Instant on/off; Edge-lit;No dark area;Anti-yellow
  • Beam angle 110 degree(standard);
  • Thickness: 20 mm;
  • Mosquito and dust prevention;
  • Color Temperature: 2800 K~6500 K;
  • Long lifetime of more than 5 years;
  • Surge 2.0 KV, connector safe and reliable design,
  • Easy to install,Suspending & Ceiling mounted & Recessed;
  • Super energy saving; save up to 70-80% more power than fluorescent tubes
12v led panel light 04

Layvikay 12V LED Panel Light Price & Delivery

12v led panel light

Different order quantities, shipping methods and parameter requirements will be different prices, please contact our sales for an accurate quotation.

Customize your 12 Volt LED Panel Light from Layvikay

Installation of DC 12V LED Panel Light

LED panel light is easy to install. It has several different installations: built-in installation, ceiling-mounted installation(exposed installation), and suspended installation.

Built-in and ceiling-mounted installations are ideal for most environments, such as hospitals, residences, and office areas.

Suspended installation is more commonly used in large space environments such as bars, restaurants, and stations.

12v led panel light series 04

High Brightness +High CRI+ Flicker Free SMD2835

Best 12 Volt LED Panel Lights for Your Next Project

led panel light 30 x 120 cm application
12v led panel light series 02
led panel light 30 x 60 cm application 02

Explore More Features of 12V LED Panel Light

Comparison between LED Panel Light and Grille Light

LED panel lights
  • Light Efficiency >110 lm/w ( high bright series can be >150 lm/w)
  • Life Time>50,000 hours
  • Perfect luminous uniformity
grille light
  • Light Efficiency only 50-60 lm/w
  • Life Time<8000 hours
  • Poor luminous uniformity

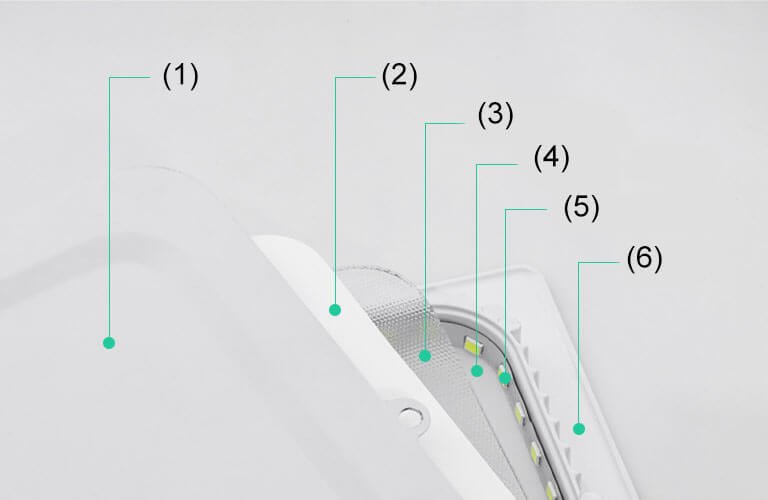

The Construction of 12V LED Panel Light

DC 12V led panel light inner

DC 12V LED panel light usually consists of below parts:

  1. Back Plate
  2. Reflective Sheet
  3. Light Guide Plate
  4. Diffuser Plate
  5. LED Beads+ PCB
  6. AL Frame

This structure is an edge-lit LED panel with ultrathin thickness (20mm).

What is the difference between Edge-lit and Back-lit?

Edge-lit DC LED panel light 12V

Direct lit led panel light

Back-lit DC LED panel light 12V

May Help Your Purchasing

What is a 12 volt LED panel Light?

A 12 volt LED panel light is a ultra-thin modern design lighting fixture that operates on a 12-volt power supply.

It consists of Al Frame, Diffuser Plate, Light Guide Plate, Reflective Paper, Back Plate and LED beads arraged on a PCB, which provides uniform and bright illumination.

These low-volt panel lights are commonly used in various applications, such as residential, commercial, and industrial spaces, as well as in vehicles like RVs and boats.

What are some key parameters of 12V LED panel lights?

The below parameters can help determine the lights' overall efficiency, durability, and suitability for your specific lighting needs. Here are some important specifications to pay attention to:

Wattage:

Wattage indicates the power consumption of LED panel lights. Generally speaking, a 9W LED panel light is equivalent to the brightness of a traditional incandescent lamp of 60W. The recommended applicable reference area is around 6 square meters.

Voltage:

Please note that 12V LED panel lights should never go directly to 110V or 220V AC voltage. They are specifically designed for use with 12V DC power supplies for applications such as vehicles, boats, or solar power.

Light Efficiency:

Light efficiency, measured in lumens per watt (lm/W), indicates how effectively the LED panel light converts electrical power into visible light. Higher light efficiency means more light output for the given power input, resulting in greater energy savings and brighter illumination.

Color Temperature:

Color temperature refers to the perceived "warmth" or "coolness" of the light emitted by the LED panel. It is measured in Kelvin (K). Different color temperatures create different atmospheres, with lower values (e.g., 2700K-3000K) producing warm, cozy light, and higher values (e.g., 5000K-6500K) providing cool, daylight-like illumination. Choose a color temperature that suits the intended environment and desired ambiance.

Color Rendering Index (CRI):

CRI measures how accurately the LED panel light reveals the true colors of objects compared to natural light. It is rated on a scale of 0 to 100, with a higher CRI indicating better color accuracy. For environments where color reproduction is important, such as retail spaces or art galleries, selecting LED panel lights with a high CRI (80 or above) is recommended.

Lifespan:

The lifespan of LED panel lights refers to the expected operating hours before the light output depreciates to a certain percentage (e.g., 70% of initial brightness). A longer lifespan ensures reduced maintenance and replacement costs. Look for LED panel lights with longer lifespans, typically specified in hours (e.g., 50,000 hours or more), to ensure long-lasting performance.

Dimming Capability:

Some LED panel lights offer dimming functionality, allowing you to adjust the brightness level according to your needs and preferences. If the dimming capability is important for your application, check whether the LED panel lights support dimming and the compatibility with dimmer switches or systems.

By considering these key parameters, you can evaluate the quality and performance of 12V LED panel lights more effectively, ensuring that they meet your requirements for efficiency, durability, light output, and color accuracy. For more knowledge on lighting parameters visit this article: https://www.layvikay.com/what-are-the-key-parameters-in-choosing-lighting-fixtures/

What are some smart features of high-end 12V LED panel lights?

High-end 12V LED panel lights often come with additional features that enhance their functionality, customization options, and overall user experience. Here are some common additional features you may find in high-end 12V LED panel lights:

Dimming Capability:

High-end LED panel lights often offer dimming functionality, allowing you to adjust the brightness level according to your specific needs and preferences. This feature provides flexibility in creating different lighting atmospheres and can contribute to energy savings by reducing power consumption when full brightness is not required.

Smart Control and Connectivity:

With advancements in smart lighting technology, high-end LED panel lights may offer smart control options. These lights can be integrated with wireless connectivity protocols such as Wi-Fi or Bluetooth, enabling control through smartphone apps or voice assistants. Smart features may include scheduling, remote control, and integration with smart home automation systems.

Tunable Color Temperature:

Tunable color temperature LED panel lights allow you to adjust the color temperature of the light output. This feature enables you to create dynamic lighting scenarios, ranging from warm white to cool white or RGB color, to suit different activities or times of day. It is often used in spaces where the ability to mimic natural daylight or create a specific ambiance is desired, such as entertainment venues, bars, offices, retail stores, or healthcare facilities.

High Color Rendering Index (CRI):

High-end LED panel lights may offer a higher CRI, typically above 90. A high CRI ensures accurate color representation and enhances the visual appeal of illuminated objects. This feature is particularly important in applications where color accuracy is crucial, such as art galleries, showrooms, or photography studios.

It's important to note that the availability of these additional features may vary depending on the specific model, and customization options offered by us. Please inquiry us for more details.

What are some common applications for 12V LED panel lights?

12V DC LED panel lights are versatile lighting fixtures that find applications in various settings. Their low voltage operation makes them particularly suitable for specific environments where 12V DC power sources are available or required. Here are some common applications for 12V LED panel lights:

Vehicle Lighting:

12V LED panel lights are widely used for vehicle interior lighting, including RVs, trains, and other vehicles. They can be used for interior lighting and accent lighting. The low voltage operation makes them compatible with the vehicle's electrical system, eliminating the need for special volt booster equipment.

Marine and Boating:

LED panel lights are well-suited for marine and boating applications due to their low voltage requirement and durability. They can be used for cabin lighting and deck lighting. Their energy efficiency and low-voltage safety make them ideal for marine environments.

Off-Grid Solar Systems:

12V LED panel lights are commonly used in off-grid solar systems, such as cabins, RVs, and remote locations, where a 12-volt battery bank is utilized. They provide efficient and reliable lighting without the need for grid power. These lights can be powered directly by the battery or connected to solar charge controllers.

Camping and Outdoor Lighting:

LED panel lights are popular for camping and outdoor lighting due to their compact size, low power consumption, and portability. They can be used in tents, RV awnings, camping trailers, and other outdoor settings where 12V power sources are available.

Showcase and Display Lighting:

LED panel lights are frequently used for showcase and display lighting in retail stores, museums, art galleries, and exhibitions. Their directional and uniform light output helps highlight products, artworks, or exhibits with enhanced visibility and color accuracy. The low heat emission of LED panel lights also minimizes the risk of damage to sensitive items.

Accent and Decorative Lighting:

LED panel lights are suitable for accent and decorative lighting applications, adding ambiance and visual appeal to residential and commercial spaces. They can be used for cove lighting, under-cabinet lighting, wall washers, and other architectural lighting designs. The versatility of LED panel lights allows for creative and customizable lighting installations.

These are just a few examples of the many applications for 12V LED panel lights. Their versatility, energy efficiency, and low-voltage operation make them suitable for a wide range of lighting needs in different environments.
