24V LED Panel Light

Introducing the sophisticated and energy-efficient 24V LED Panel Light. This cutting-edge lighting solution offers superb illumination while being convenient replacement and cost-effective. They are perfect for offices, homes, and commercial environments.

The slim and modern design makes these 24 volt DC LED panel lights ideal for a variety of installations. They can be surface mounted, recessed, or even suspended, giving you the flexibility to use them in different ways to meet your specific lighting needs.

All series are available in different sizes and color temperatures. Custom dimming is also available with a color rendering index (CRI) of up to 80+.

Upgrade your lighting system with 24V LED panel light and enjoy energy-efficient, long-lasting, high-quality lighting in any space.

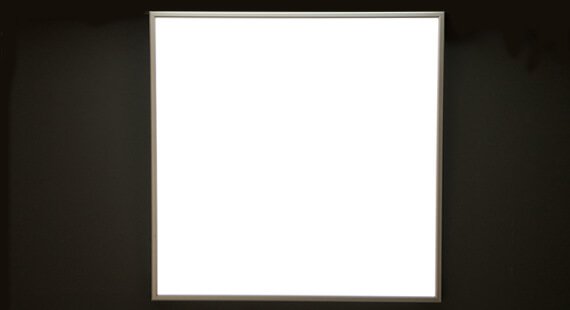

Square 24V LED Panel Light

  • Structure:Al Frame+Diffuser Plate+Light Guide Plate+Reflective Paper+Back Plate
  • High brightness SMD2835, top quality brand LED chips;
  • Flicker-free driver, support dimming function
  • Instant on/off; Edge-lit;No dark area;Anti-yellow
  • Beam angle 110 degree(standard);
  • Thickness: 10 mm;
  • Mosquito and dust prevention;
  • Color Temperature: 2800 K~6500 K;
  • Long lifetime of more than 5 years;
  • Surge 2.0 KV, connector safe and reliable design,
  • Easy to install,Suspending & Ceiling mounted & Recessed;
  • Super energy saving; save up to 70-80% more power than fluorescent tubes
LED ceiling panel light

Rectangular 24V LED Panel Light

  • Structure:Al Frame+Diffuser Plate+Light Guide Plate+Reflective Paper+Back Plate
  • High brightness SMD2835, top quality brand LED chips;
  • Flicker-free driver, support dimming function
  • Instant on/off; Edge-lit;No dark area;Anti-yellow
  • Beam angle 110 degree(standard);
  • Thickness: 10 mm;
  • Mosquito and dust prevention;
  • Color Temperature: 2800 K~6500 K;
  • Long lifetime of more than 5 years;
  • Surge 2.0 KV, connector safe and reliable design,
  • Easy to install,Suspending & Ceiling mounted & Recessed;
  • Super energy saving; save up to 70-80% more power than fluorescent tubes
LED ceiling panel light

Installation of DC 24V LED panel light

LED panel light is easy to install. It has several different installations: built-in installation, ceiling-mounted installation(exposed installation), and suspended installation.

Built-in and ceiling-mounted installations are ideal for most environments, such as hospitals, residences, and office areas.

Suspended installation is more commonly used in large space environments such as bars, restaurants, and stations.

24v led panel light

Ultra-thin Edge-lit 24V LED Panel Light

Best 24 Volt LED Panel Lights for Your Next Project

24v led panel light
12v led panel light series 02
led panel light 30 x 60 cm application 02

Explore More Features of 24V LED Panel Light

Comparison between LED Panel Light and Grille Light

LED panel lights
  • Light Efficiency >110 lm/w ( high bright series can be >150 lm/w)
  • Life Time>50,000 hours
  • Perfect luminous uniformity
grille light
  • Light Efficiency only 50-60 lm/w
  • Life Time<8000 hours
  • Poor luminous uniformity

The Construction of 24V LED Panel Light

LED panel lights

DC 24V LED panel light usually consists of below parts:

  1. AL Frame(6063 Al)+LED Beads(SMD2835)+ PCB(high thermal conductivity aluminum substrate)
  2. Diffuser Plate:PC/ Acrylic (PMMA) or PS is optional
    Light Guide Plate: Optical Grade Acrylic/PC Sheet.
  3. Reflective Sheet:High
  4. Reflex PET Sheet
  5. Back Plate: Metal Material, 2.5mm-3mm thickness.

This structure is an edge-lit with ultra-thin thickness.

What is the difference between Edge-lit and Back-lit?

Edge-lit DC LED panel light 24V

Direct lit led panel light

Back-lit DC LED panel light 24V

May Help Your Purchasing

What is the lifespan of a 24V LED panel light?

Layvikay 24V LED panel light is guaranteed for more than 5 years. On average, our LED panel lights can last between 50,000 to 100,000 hours. This is approximately 5-10 times longer than traditional incandescent or fluorescent lamp.

What is a 24V LED panel light and the benefits of using it?

A 24V LED panel light is a type of lighting fixture that uses light-emitting diodes (LEDs) as the source of illumination and operates on a 24-volt power supply. Here are some key benefits of using a 24V LED panel light:

1. Energy Efficiency:


- LEDs are known for their high energy efficiency, converting a greater percentage of input energy into light compared to traditional lighting technologies like incandescent or fluorescent bulbs.
- Generally, a 9W 24V LED panel light can replace a traditional 60W incandescent bulb.

2. Long Lifespan:


- LEDs have a significantly longer lifespan than traditional light sources, often lasting 50,000+ hours of operation.
- This translates to reduced maintenance and replacement costs over the lifetime of the lighting system.

3. Uniform Illumination:


- 24V LED panel lights are designed to provide a uniform and consistent distribution of light across the entire surface of the panel.
- This results in a more even and comfortable lighting environment, reducing the risk of hot spots or uneven illumination.

4. Versatility:


- Visit the specification, our 24V LED panel lights are available in a wide range of sizes, shapes, and color temperatures to suit various lighting applications, such as offices, retail spaces, schools, and healthcare facilities.
- They can be easily integrated into suspended ceiling systems or surface-mounted on walls or ceilings.

5. Improved Safety:


- 24V LED panel lights operate at a lower voltage compared to traditional 110V or 220V lighting systems, reducing the risk of electrical hazards and making them safer for installation and maintenance.

6. Dimming Capabilities:


- Many 24V LED panel lights are equipped with dimming capabilities, allowing users to adjust the brightness to suit their lighting needs and preferences, leading to further energy savings.

7. Environmental Benefits:


- LEDs are free of mercury and other hazardous materials, making them a more environmentally friendly lighting solution compared to fluorescent or high-intensity discharge (HID) lamps.

Overall, the combination of energy efficiency, long lifespan, uniform illumination, and improved safety makes 24V LED panel lights a popular and practical choice for a wide range of indoor lighting applications.

Can a 24V LED panel light be dimmed or customized for different settings?

Yes, 24V LED panel lights can often be dimmed or customized for different brightness settings and effects. Here are a few common ways this is achieved:

1. Dimming with a constant voltage LED dimmer:


Many 24V LED panels are dimmable when used with a compatible constant voltage LED dimmer switch or controller. These allow you to smoothly dim the lights from 100% down to around 10-20% brightness.

2. Using a 0-10V or 1-10V dimmer:


Some 24V LED panels have a dimming input that allows control from a 0-10V or 1-10V low voltage dimmer signal. This provides step-less dimming from 100% to very low levels.

3. PWM Dimming:


Pulse width modulation (PWM) dimming chops the LED power rapidly on and off at different duty cycles to control brightness. Many LED drivers and controllers offer PWM dimming capability.

4. RGB/RGBW Color Changing:


RGB or RGBW 24V LED panels allow you to mix the red, green, blue (and sometimes white) LED channels to produce millions of color options in addition to dimming each channel.

5. DMX/DALI Control:


For more advanced installations, 24V LED panels can be integrated into DMX512 or DALI digital lighting control systems for precise scene selection, dynamic effects, scheduling and more.

These are our customized features, please contact our sales team for a more detailed proposal.

Can a 24V LED panel light be used in outdoor or wet/damp environments?

Most of the regular panel lights are only suitable for indoor use, only 24V LED panel lights with IP rating of 65 or above can be used outdoors or in humid/wet environments. Here are some pointers for using 24V LED panel light in outdoor or humid areas:

IP Rating:


-Panel dust protection with an IP65 rating prevents low-pressure water spray at any angle. This is usually the minimum requirement for outdoor use.
-IP67 or IP68 ratings indicate protection against temporary immersion in water, making them suitable for wet locations.

Power Supply Location:


The low voltage 24V DC power supply should be located indoors or in an appropriate outdoor rated enclosure.

How does the brightness and color temperature of a 24V LED panel light compare to other lighting options?

The brightness and color temperature of 24V LED panel light can vary quite a bit compared to other lighting options. Here's a general comparison:

Brightness:


- 24V LED panel lights are available in a very wide range of brightness levels measured in lumens.
- They can range from around 600 lumens for basic 6W small panel lights up to 7000+ lumens for very high brightness 60W large panel lights.
- This gives them the flexibility to provide brightness comparable to anything from a traditional fluorescent light to a high-intensity commercial lighting fixture.

Color Temperature:


- 24V LED panel lights commonly come in color temperatures from 2700K-6500K.
- 2700K-3000K is a warm white similar to incandescent or halogen bulbs.
- 4000K-4500K is a neutral/cool white often used in offices.
- 5000K-6500K is a cool, daylight color temperature.
- Our RGB panel lights allow tuning to virtually any color temperature.

Compared to other options:


- They can match or exceed the brightness of fluorescent troffers while using less energy.
- They provide more consistent light levels compared to incandescent or halogen sources.
- High-end LED panels can meet or surpass HID or high-intensity discharge lighting brightness.
- Color consistency and temperature options exceed traditional lighting sources.

So in summary, 24V LED panel lights cover a very wide range allowing them to match or outperform most other lighting technologies in terms of brightness and color temperature flexibility when specified correctly for the application.

Are there any additional features or accessories available for enhancing the performance of a 24V LED panel light?

Yes, there are several additional features and accessories available that can enhance the performance and functionality of 24V LED panel light:

1. Dimming controls

As mentioned earlier, dimming interfaces like 0-10V, PWM, DALI, or DMX allow for dimming and dynamic control of the panel brightness and effects.

2. Motion/Occupancy Sensors

Integrating occupancy and motion sensors can automatically turn panels on/off or dim them when an area is vacant to save energy.

3. Wireless Controls

Some 24V panels integrate wireless control like Bluetooth, Zigbee or WiFi for easy app-based control and scheduling from smartphones/tablets.

4. Emergency Battery Backups

Having the LED driver or power supply connected to an emergency battery pack can provide hours of backup lighting in a power outage.

5. Color Tuning

For RGB/RGBW panels, controls that enable tuning of color temperature and creating dynamic color changing effects.

6. Integration to Building Controls

Interfacing 24V LED panels with smart building management systems via protocols like BACnet for centralized control.

So basic 24V LED panel light provide great light output, leveraging some of these accessory features and control options can really maximize their performance, efficiency and controllability.
