custom amp

Custom Amp(customized 1.5U power amplifier)

Layvikay provides high-performance custom amp (public address power amplifier) at competitive prices. Differing from the professional audio amplifier, the PA amplifier has two types of speaker outputs: one is the constant resistance with 4-16Ω, and the other is the constant voltage with 70V/100V.
Besides its regular functions, it has independent zone control, with microphone inputs in 6.35mm/XLR/combo sockets, auxiliary line inputs in RCA/combo sockets, MP3/SD card/USB, an AM/FM tuner, a built-in Chime, and more. Additionally, it has built-in protection circuits, with overload, output DC, and power-on delay protection functions.
Without a doubt, they are your perfect choice for public broadcasting/ background music in shops, offices, schools, warehouses, churches, restaurants and other public areas.

Features:

  • Constant Voltage + Constant Resistance Dual Functions
  • MIC1+MIC2 Dual Microphone System
  • 2 Zones Independent Control
  • Digital Display
  • SD Card/USB Audio Input
  • Power and Clip LED Indicator
  • Short Circuit Protection
  • Overheat Protection
  • Soft Start Protection
  • Input and Output Overload Protection

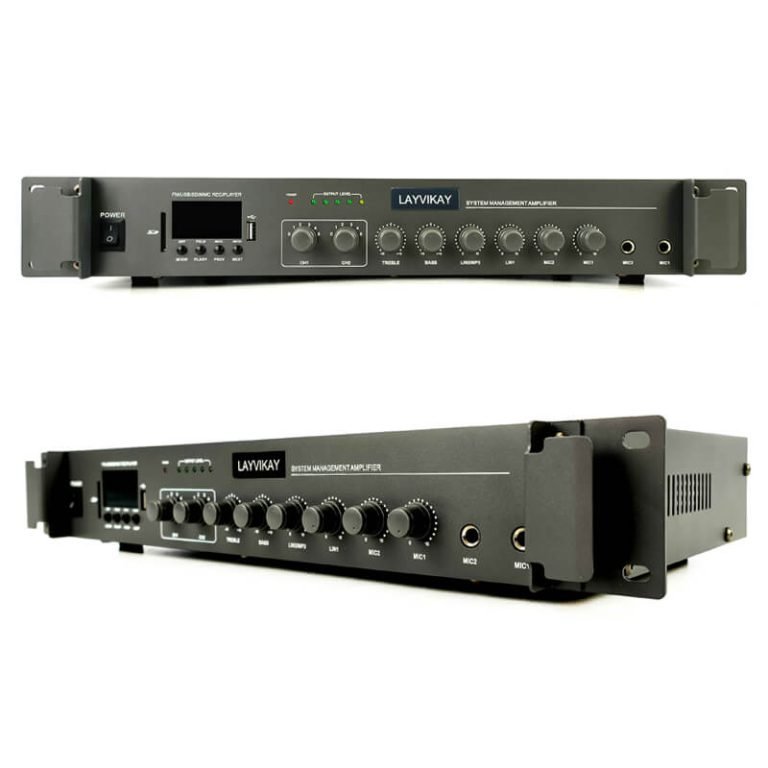

1.5U Power Amplifier

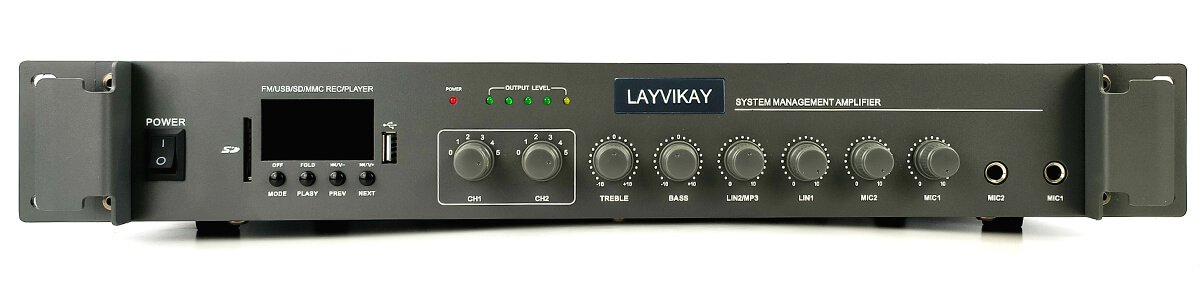

custom amplifier 1

Model:ST-USB-80H

  • Max Output Power:80W
  • Speak Output:70/100V/4-16Ω
  • MIC1 Sensibility:0.005(±1mV)
  • MIC2 Sensibility:0.005(±1mV)
  • Line, Priority in:0.3(±20mV)VRMS
  • Priority in 100V:100 VRMS
  • SNR MIC, Line 1:≥74db(Maximum)
  • SNR Line 2, Priority in≥80dB(Maximum)
  • Freq. Resp.:80Hz-15kHz(±3dB)
  • Distortion:<0.5% at 1/3 Voltage
  • Bass Tone:±10dB(100Hz)
  • Treble Tone:±10dB(10KHz)
  • AC Power Supply: AC110V/220V/50-60Hz
  • Built-in USB & BT module
  • Freq. Resp.:20Hz-20kHz@(0/-0.25dB)
  • THD<0.05%@1kHz, 10%Rated Power
  • IMD<0.1%@60Hz/7kHz, 10%Rated Power
  • Damping Coefficient>400:1@1kHz,8ohms
  • S/N Ratio:>85dB(A)
  • Switching rate>60V/us
  • Unbalanced Input Impedance:10kΩ
  • Balanced Input Impedance:20Ω
  • Input Sensitivity:0.775V/1.0V/1.4V
  • Working Temperature -10℃~40℃
  • Storage Temperature-30℃ ~85℃

Model:ST-USB-120H

  • Max Output Power:120W
  • Speak Output:70/100V/4-16Ω
  • MIC1 Sensibility:0.005(±1mV)
  • MIC2 Sensibility:0.005(±1mV)
  • Line, Priority in:0.3(±20mV)VRMS
  • Priority in 100V:100 VRMS
  • SNR MIC, Line 1:≥74db(Maximum)
  • SNR Line 2, Priority in≥80dB(Maximum)
  • Freq. Resp.:80Hz-15kHz(±3dB)
  • Distortion:<0.5% at 1/3 Voltage
  • Bass Tone:±10dB(100Hz)
  • Treble Tone:±10dB(10KHz)
  • AC Power Supply: AC110V/220V/50-60Hz
  • Built-in USB & BT module
  • Freq. Resp.:20Hz-20kHz@(0/-0.25dB)
  • THD<0.05%@1kHz, 10%Rated Power
  • IMD<0.1%@60Hz/7kHz, 10%Rated Power
  • Damping Coefficient>400:1@1kHz,8ohms
  • S/N Ratio:>85dB(A)
  • Switching rate>60V/us
  • Unbalanced Input Impedance:10kΩ
  • Balanced Input Impedance:20Ω
  • Input Sensitivity:0.775V/1.0V/1.4V
  • Working Temperature -10℃~40℃
  • Storage Temperature-30℃ ~85℃3

Model:ST-USB-180H

  • Max Output Power:180W
  • Speak Output:70/100V/4-16Ω
  • MIC1 Sensibility:0.005(±1mV)
  • MIC2 Sensibility:0.005(±1mV)
  • Line, Priority in:0.3(±20mV)VRMS
  • Priority in 100V:100 VRMS
  • SNR MIC, Line 1:≥74db(Maximum)
  • SNR Line 2, Priority in≥80dB(Maximum)
  • Freq. Resp.:80Hz-15kHz(±3dB)
  • Distortion:<0.5% at 1/3 Voltage
  • Bass Tone:±10dB(100Hz)
  • Treble Tone:±10dB(10KHz)
  • AC Power Supply: AC110V/220V/50-60Hz
  • Built-in USB & BT module
  • Freq. Resp.:20Hz-20kHz@(0/-0.25dB)
  • THD<0.05%@1kHz, 10%Rated Power
  • IMD<0.1%@60Hz/7kHz, 10%Rated Power
  • Damping Coefficient>400:1@1kHz,8ohms
  • S/N Ratio:>85dB(A)
  • Switching rate>60V/us
  • Unbalanced Input Impedance:10kΩ
  • Balanced Input Impedance:20Ω
  • Input Sensitivity:0.775V/1.0V/1.4V
  • Working Temperature -10℃~40℃
  • Storage Temperature-30℃ ~85℃

Customized&Thoughtful Service

Most parameters can be customized such as Wattage/Logo/Housing Color/Brand Components/Packing etc.
Layvikay provides high-performance public address amplifier solutions with the latest technology, and more importantly, guarantees fast delivery times and attentive service to ensure customers sufficiently benefit from our high quality and competitively priced products.
Contact our sales team and let us know your requirement, we are pleased to recommend the most suitable custom amp.

custom amp packing

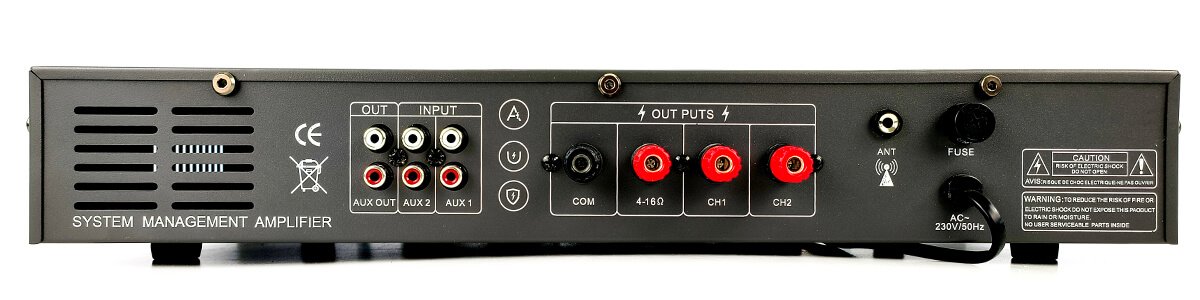

custom amp 2
