PA System Amplifier
Layvikay provides high-performance PA system amplifier (public address power amplifier) at competitive prices. Differing from the professional power amplifier, the PA amplifier has two types of speaker outputs: one is the constant resistance with 4-16Ω, and the other is the constant voltage with 70V/100V.
Besides its regular functions, it has independent zone control, with microphone inputs in 6.35mm/XLR/combo sockets, auxiliary line inputs in RCA/combo sockets, MP3/SD card/USB, an AM/FM tuner, a built-in Chime, and more. Additionally, it has built-in protection circuits, with overload, output DC, and power-on delay protection functions.
Without a doubt, they are your perfect choice for public broadcasting/ background music in shops, offices, schools, warehouses, churches, restaurants and other public areas.
Features:
- Constant Voltage + Constant Resistance Dual Functions
- MIC1+MIC2 Dual Microphone System
- 6 Zones Independent Control
- Digital Display
- SD Card/USB Audio Input
- Power and Clip LED Indicator
- Short Circuit Protection
- Overheat Protection
- Soft Start Protection
- Input and Output Overload Protection

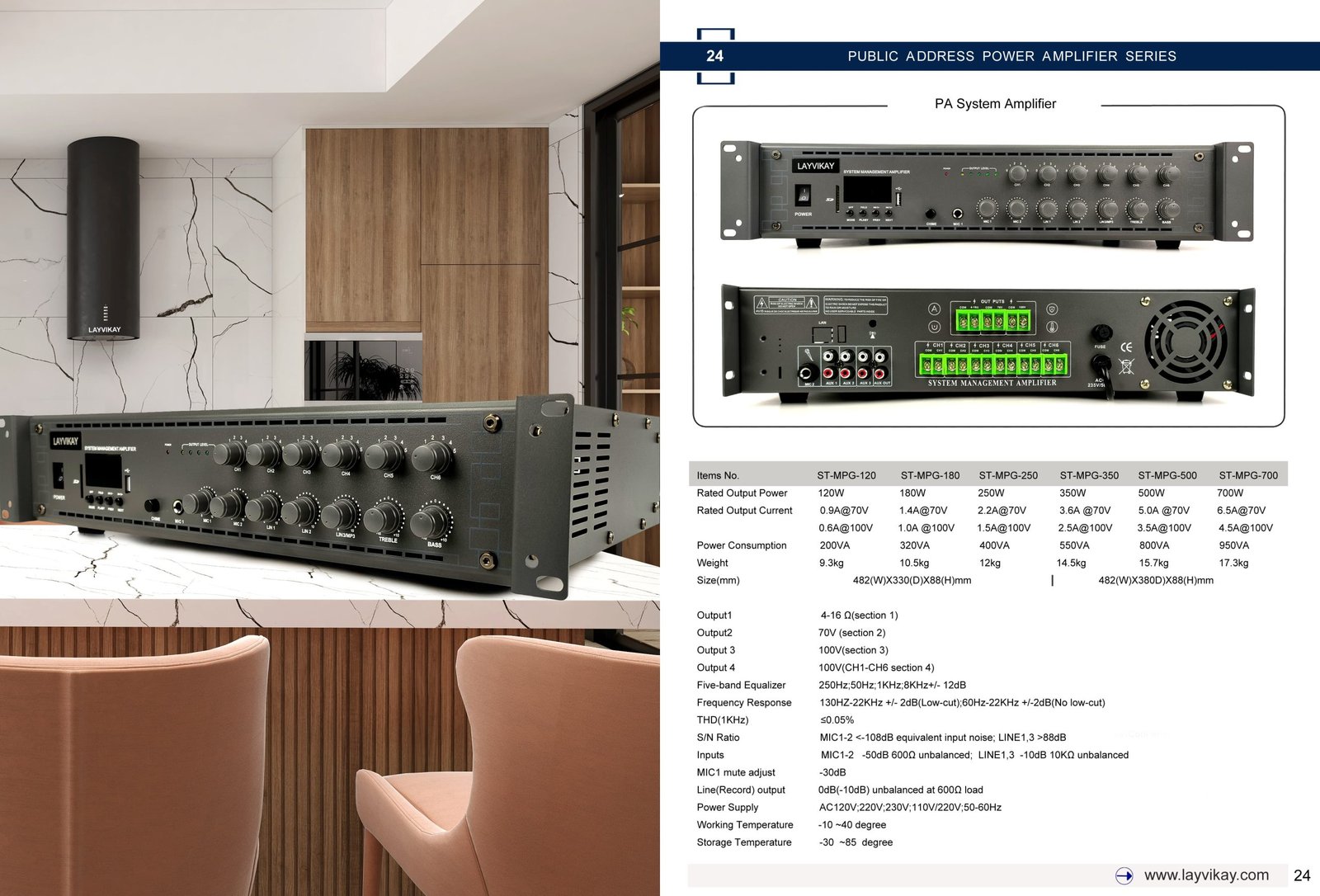

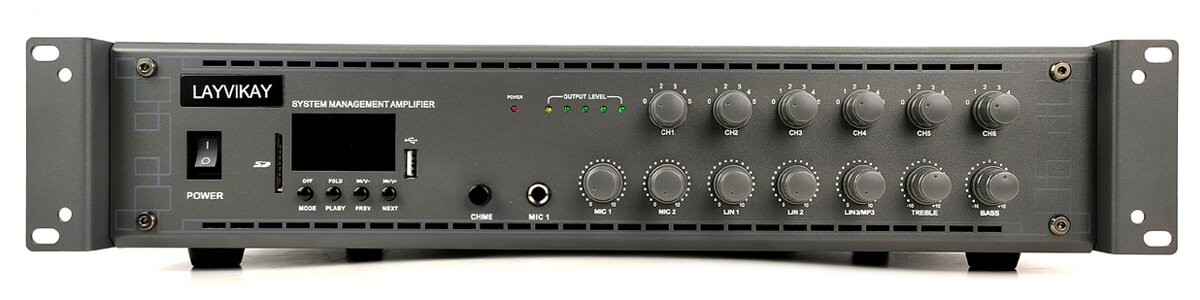

Public Address Power Amplifier

Model:ST-MPG-120
- Rated Power:120W
- Rated Output Current: 0.9A@70V;0.6A@100V
- Power Consumption: 200VA
- Size:482x330x88mm
- Weight:9.3KG
Model:ST-MPG-250
- Rated Power:250W
- Rated Output Current: 2.2A@70V;1.5A@100V
- Power Consumption: 400VA
- Size:482x330x88mm
- Weight:12KG
Model:ST-MPG-350
- Rated Power:350W
- Rated Output Current: 3.6A@70V;2.5A@100V
- Power Consumption: 550VA
- Size:482x380x88mm
- Weight:14.5KG
Model:ST-MPG-500
- Rated Power:500W
- Rated Output Current: 5.0A@70V;3.5A@100V
- Power Consumption: 800VA
- Size:482x380x88mm
- Weight:15.7KG
Model:ST-MPG-700
- Rated Power:700W
- Rated Output Current: 6.5A@70V;4.5A@100V
- Power Consumption: 950VA
- Size:482x380x88mm
- Weight:17.3KG
More Parameters
- Output 1:4-16Ω (section 1)
- Output 2:70V (section 2)
- Output 3:100V(section 3)
- Output 4:100V(CH1-CH6 section 4)
- Five-band Equalizer:250Hz;50Hz;1KHz;8KHz+/- 12dB
- Frequency Response:130HZ-22KHz +/- 2dB(Low-cut);60Hz-22KHz +/-2dB(No low-cut)
- THD(1KHz):<0.05%
- S/N Ratio:MIC1-2 <-108dB equivalent input noise; LINE1,3 >88dB
- Inputs:MIC1-2 -50dB 600 unbalanced; LINE1,3 -10dB 10K unbalanced
- MIC1 mute adjust:-30dB
- Line(Record) output:0dB(-10dB) unbalanced at 600Ω load
Bass Tone:±12dB(100Hz)
Treble Tone:±12dB(10KHz)
Standby Power Consumption:<3W
- Power Supply:AC120V;220V;230V;110V/220V;50-60Hz
- Working Temperature:-10~40℃
- Storage Temperature:-30 ~85℃
Customized&Thoughtful Service
Most of parameters can be customized:
- Your Logo and Package Design
- The Front and Back Panel Design
- Wattage and Housing Color
- Special Function Addition
Layvikay provides high-performance public address amplifier solutions with the latest technology, and more importantly, guarantees fast delivery times and attentive service to ensure customers sufficiently benefit from our high quality and competitively priced products.
Contact our sales team and let us know your requirement, we are pleased to recommend the most suitable PA system amplifiers.
