solar road light 1

Solar Road Light

Layvikay solar road light /pathway light is free from the utility grid and designed for long-term, reliable performance with little or no maintenance. This lighting system requires no standard electric wires for installation and no professional personnel is necessary.
Without a doubt, it is a perfect lighting solution for rural, suburban, parks, bike paths, remote trails, building entrances,pathway,garden and courtyards.


  • Comes with a high-efficiency mono crystalline silicon solar panel and a large capacity lithium battery;
  • This solar light has a built-in optical control function, turning off during the day and turning on automatically at night;
  • It has a built-in smart solar charge controller with MPPT (custom made);
  • All series of solar lights have a variety of working modes that can be set by remote control;
  • A special design for long-distance sensing by microwave detection;
  • The entire body has an IP 65 waterproof function;

Integrated Solar Powered Street Light


  • Model No.: ST-SSL-180P
  • Led Chip Rated Power: 60W
  • LED Qty : 180 pcs SMD 3030
  • Size(WxLxT1xT2):400x887x60x150mm
  • Mono Solar Panel
  • Power:70 W 6 V
  • Solar Panel Size: 882x396mm
  • LiFePO4 Battery: 70 Ah 3.2 V
  • N.W.:4.8 KG
  • Suggest Installation Height:3 meters
  • Model No.: ST-SSL-240P
  • Led Chip Rated Power:80 W
  • LED Qty : 240 pcs SMD 5730
  • Size(WxLxT1xT2):400x1160x60x150mm
  • Mono Solar Panel Power: 90 W 16 V
  • Solar Panel Size: 115×396 mm
  • LiFePO4 Battery: 90 Ah 3.2 V
  • N.W.:5.5 KG
  • Suggest Installation Height:4 meters
  • Model No.: ST-SSL-300P
  • Led Chip Rated Power:100 W
  • LED Qty : 300 pcs SMD 5730
  • Size(WxLxT1xT2):400x1435x60x150mm
  • Mono Solar Panel Power: 110 W 16 V
  • Solar Panel Size: 1431x396mm
  • LiFePO4 Battery: 110 Ah 3.2 V
  • N.W.:5.9 KG
  • Suggest Installation Height:5 meters

More Parameters

  • Solar Charge Controller: MPPT(Maximum Power Point Tracking)available;Infrared Solar Charging Controller
  • Lamp Body Material: Aluminum+Extra resistant ABS construction
  • Work Mode: remote control/automatic light control/radar sensing
  • Detector Type:Microwave Radar with Effective Distance:<10 m
  • Saving Mode Working Time>10 H;Continuously 4-5 rainy days
  • Battery:Li-iron phosphate,LiFePO4>2000 cycles
  • Sensor Delay Time:10 Seconds (default)
  • Work Temperature: -20 degree to 65 degree
  • Storage Temperature: -20 degree to 45 degree
  • Charging Time:6-8 H
  • CCT: 3000-6500 k
  • CRI: 75 plus
  • IP Grade: 65
solar road light size 1

Product Details

High Brightness LED Beads

The lamp use 160 lm/w or more high brightness lamp beads,SMD2835/3030/5730 is optional;Osram/Philips/Nichia/Epistar/Cree/Samsung/Lumileds brand is optional.

solar road light detail 1

Radar Sensor

It has built-in sensitive radar microwave detection up to a distance of 15 meters.

Large Capacity Li-iron phosphate Battery

This solar light uses high-capacity lithium iron phosphate batteries and has a built-in protection board with overcharge and over-discharge protection.

all in one solar street light detail 4
solar road light detail 3

Grade A Mono Solar Panel

High efficiency mono crystalline silicon,the photoelectric conversion rate 19% plus.

More Features

all in one solar street light meridian plane light distribution

Meridian Plane Light Distribution


Pseudo Color

solar road light height

Installation Height

Motion Detection with Smart Control

Dim at 30% Power

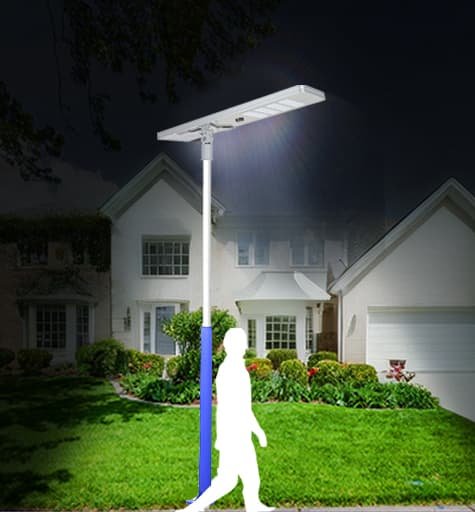

solar road light 11

Bright at 100% Power

solar road light 12

No Motion detected+10 seconds delay:Dim at 30% Power

Ways To Install

solar street light mounted on the wall

Mounted on the Wall

metal pole installation

Metal Pole Installation

solar street light cement pole installation

Cement Pole Installation


solar road light 15
solar road light 16
solar road light 19

Customized&Thoughtful Service

Customized parameter is optional:

  • Light Source LED Beads Quantity
  • LED Chip Brand
  • Color Temperature
  • Solar Panel Size
  • Battery Capacity
  • Driver
  • Your Logo and Package Design

Layvikay provides high-performance LED lighting solutions with the latest technology, and more importantly, guarantees fast delivery times and attentive service to ensure customers sufficiently benefit from our high quality and competitively priced products.
Contact our sales team and let us know your requirement, we are pleased to recommend the most suitable solar road light products.
