Wall Washer Lighting

Wall washer lighting (also called LED light bar) is a perfect architectural lighting solution for outlining the appearance of buildings, bridges and landscapes etc. It includes built-in 36 pcs high-brightness Osram/Philips/Epistar white (2800-6500k) or RGBW full colors 4 IN 1 LED beads, with pure color and high color rendering index.

  • DC 24 V Work Voltage
  • Minimum Light Attenuation
  • Customized Length is Optional
  • Uniform Light Distribution, No Glare Light
  • Customized Color Temperatures with High CRI
  • Made of Aluminum Oxide Coating and Overall Molding
  • High-strength tempered Glass Cover and PMMA Optical Lens
  • High Brightness Power LED Beads with Osram/Philips/Epistar Chip
  • Great Atmospheric and Profile Lighting Solution for Building Interior and Exterior/Bridge/Landscape etc.

LayviKay Wall Washer Lighting



  • Light Source: 36 pcs Osram/Philips/Epistar Chip
  • CCT: 2700-6500k/ (Red+Green+Blue+White) 4 IN 1
  • Material: Die-casting Aluminum+Tempered Glass +PMMA Lens
  • Work Volt: DC 24 V
  • Wattage: 36 W
  • IP Grade: 65
  • CRI: >80
  • Chip Luminous Grade :140 lm / pc
  • Work Temperature:-30 to 60 degree
  • Size:L=998mm;W1=47.5mm;H1=33mm;H2=40.5mm;W2=38mm;H3=76mm
  • Inch:L=39”;W1=1.87”;H1=1.3”;H2=1.6”;W2=1.5”;H3=3”
wall washer light size

More Features

wall washer light 03
wall washer lighting 04
  • Long Lifetime
  • High Light Efficiency
  • Uniform RGBW Color Mixing, No Shadows
  • High Temperature Resistant,Fireproof, Anti-aging
  • Waterproof,Dust-proof,UV Resistant,Pressure Resistant,Crack Resistant
  • Wall Washer Light Baffle is Optional
  • Beam Angle: 30°/45°/60° is Optional
  • 2.4GHz RF Remote,Dimmer Function and DMX512 is Optional
  • Easy to Install,the Angle of  Mounting Bracket is Adjustable

Customized&Thoughtful Service

Most of parameters can be customized:

  • Length
  • LED Beads Wattage
  • Chip Brand and Lumen Grade
  • 3 IN 1 LED/4 IN 1 LED/5 IN 1 LED is optional
  • Color Temperature
  • Your Logo and Package Design

LayviKay not only provides professional architectural lighting solution with latest technology, but also guarantees fast lead time and thoughtful service to ensure customers are sufficiently benefited from our high performance products at competitive pricing.
Contact our sales team and tell us your requirement,we are very pleased to recommend the most suitable wall washer lighting for you.

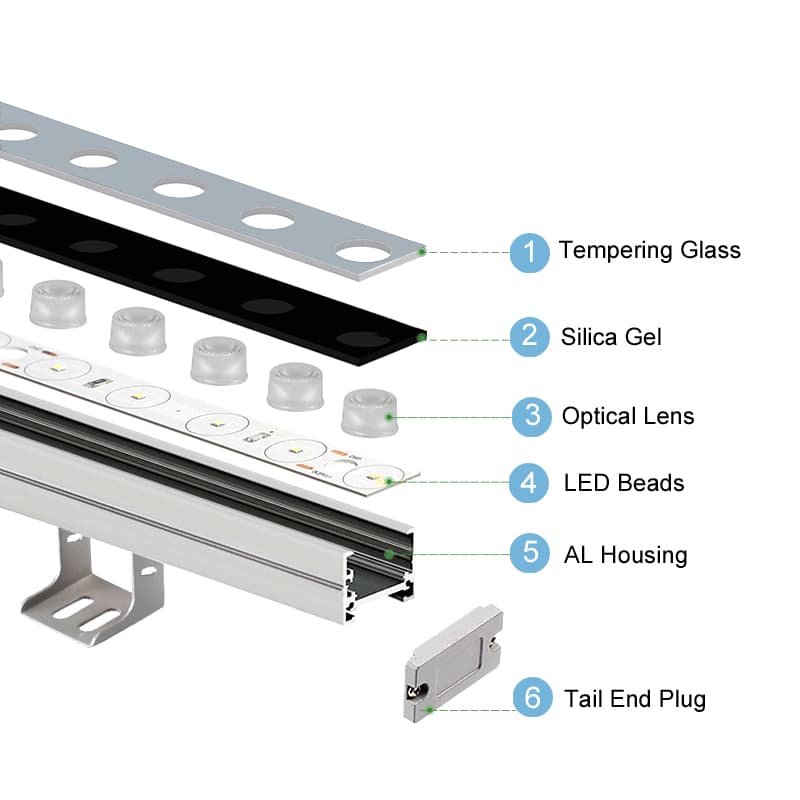

wall washer lighting structure

Test Wall Washer Lighting Before Shipment

wall washer light waterproof

DC/AC Wall Washer Lighting Connection Ways

DC 24V wall washer light

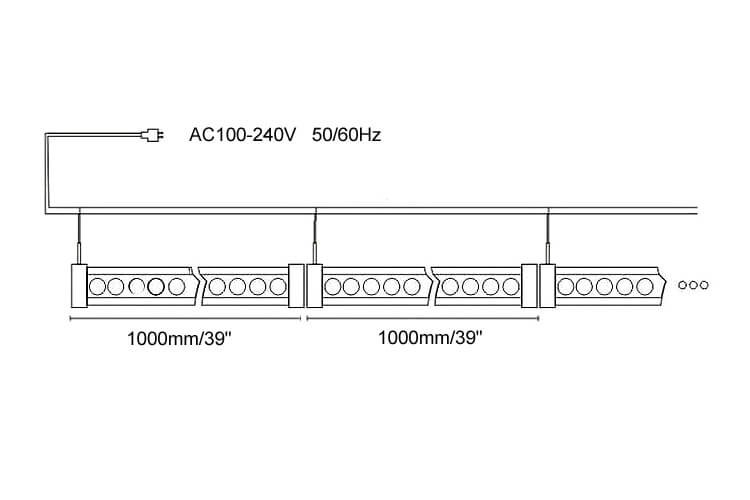

AC wall washer light
led light bar connection DC

Colorful Architectural & Atmospheric Lighting

cool white wall washer light

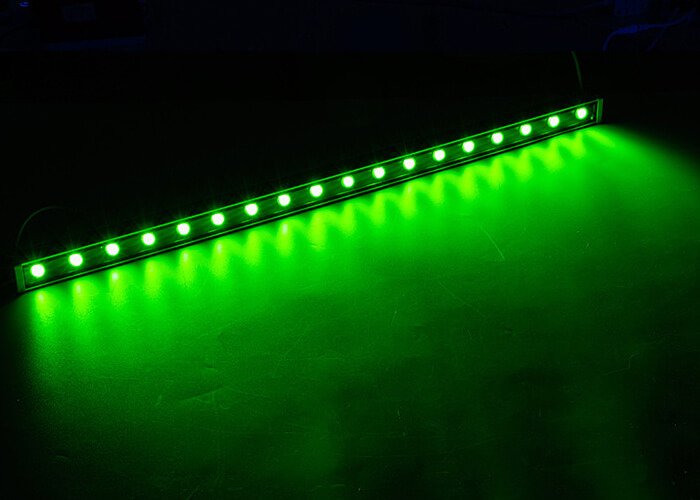

green wall washer light

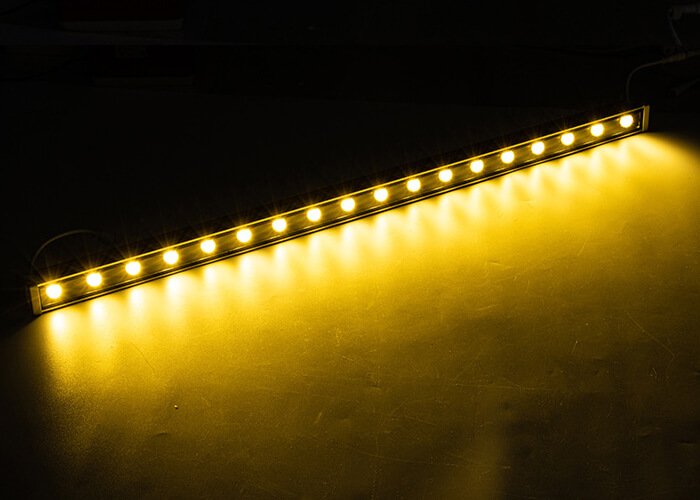

yellow wall washer light
blue wall washer light

Best Wall Washer Lighting for Your Next Projects

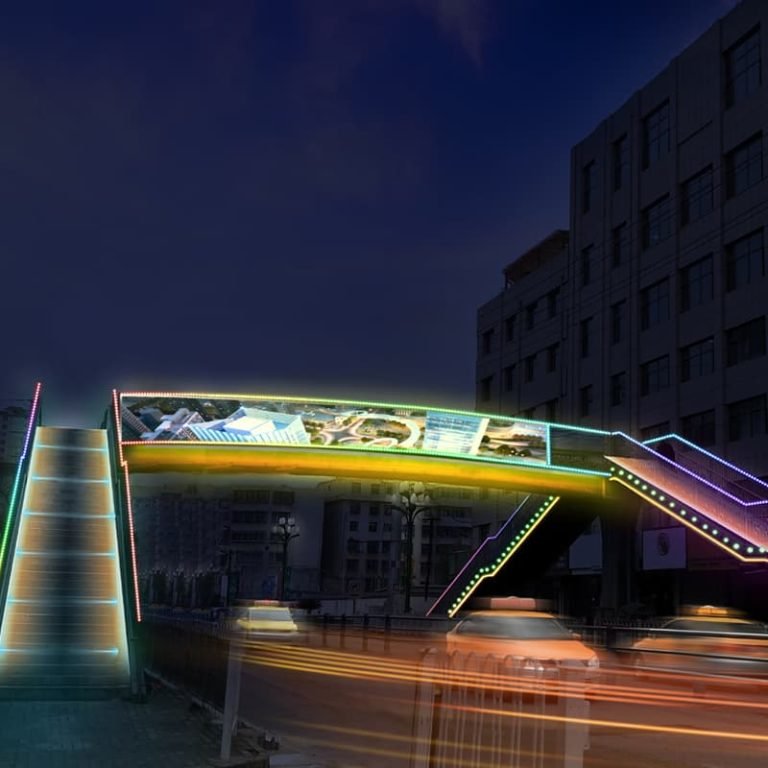

wall washer lighting 03
wall washer light 04

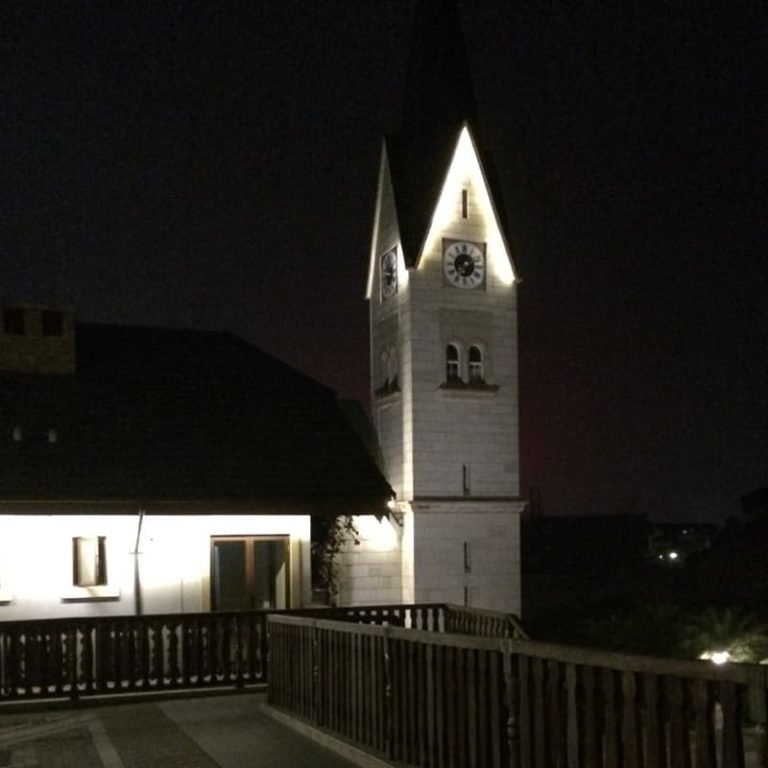

wall washer light 07a
