A Basic Guide to Commercial Amplifiers for Purchasers

Commercial amplifiers are one of the most critical pieces of equipment in a sound system, from music venues and recording studios to commercial spaces and public address systems. Understanding the fundamentals of commercial amplifiers is important for audio amplifier purchasers or those seeking to improve the sound quality of a commercial environment.

In this article, we will explore the definition, function, types, applications, specification, wiring and maintenance of commercial amplifiers. In addition, we’ll delve into the factors to consider when choosing a commercial amplifier and offer insights into future trends and developments in this field.

What is a Commercial Amplifier?

Definition of a Commercial Amplifier

A commercial amplifier is an audio device used to amplify the strength of an input signal to produce a larger output signal. It receives weak audio signals and boosts these signals to strength suitable for driving speakers or other audio output devices. The output signal can then be used to drive a variety of audio terminal devices. Commercial amplifiers are typically used in a variety of applications such as stage performance systems, public broadcasting systems, theater systems, and vehicle audio systems.

Types of Commercial Amplifiers

According to the purpose of the amplifier, commercial amplifiers can be categorized into two types.

Power Amplifiers

The ordinary type of commercial amplifier is the power amplifier, which is the most widely used amplifier for increasing the power of audio signals. This type of amplifier is usually categorized into two types: constant voltage amplifiers and constant resistance amplifiers, which are used to drive speakers or other audio devices.

Constant Voltage Amplifier

Constant voltage amplifier is to promote the speakers work with voltage, characterized by large output voltage but small current. It is suitable for public places where several small power speakers need to be connected.

public address amplifiers 5

Constant Voltage Amplifier

Constant Resistance Amplifier

Constant resistance amplifier is a stereo output with low voltage and high current, which is suitable for use in places where the distance between speakers and amplifiers is relatively close. And there is no need to connect many speakers, such as stage performances, movie theaters, bars, and karaoke halls.

power amplifier M5000

Constant Resistance Amplifier

There is also a category of constant voltage and constant impedance dual-function, such as the Layvikay small amplifier, which is suitable for home use as a stereo amplifier as well as for public area like shops, offices, schools, warehouses, churches, restaurants,etc.

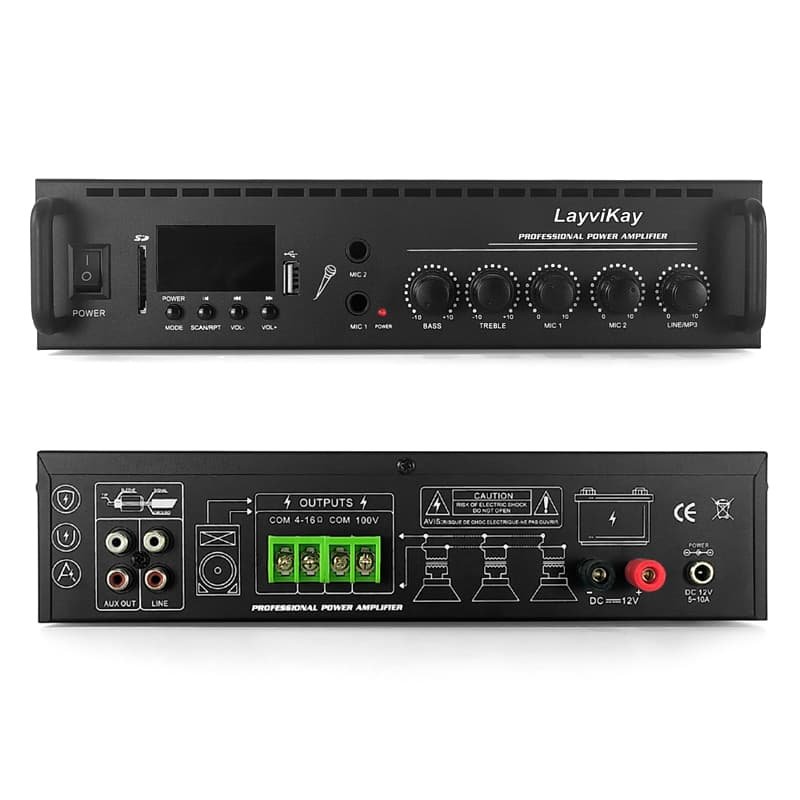

compact amplifier 04

Constant Voltage + Constant Impedance Dual-function


A preamplifier is an electronic device placed between the source and the amplifier and designed to accept weak voltage signals from the source. It converts the weak electrical signal into a strong and noise tolerant output signal. Thus, signal distortion can be avoided.
Preamplifiers are typically used to provide signal conditioning for microphones and other audio sources.

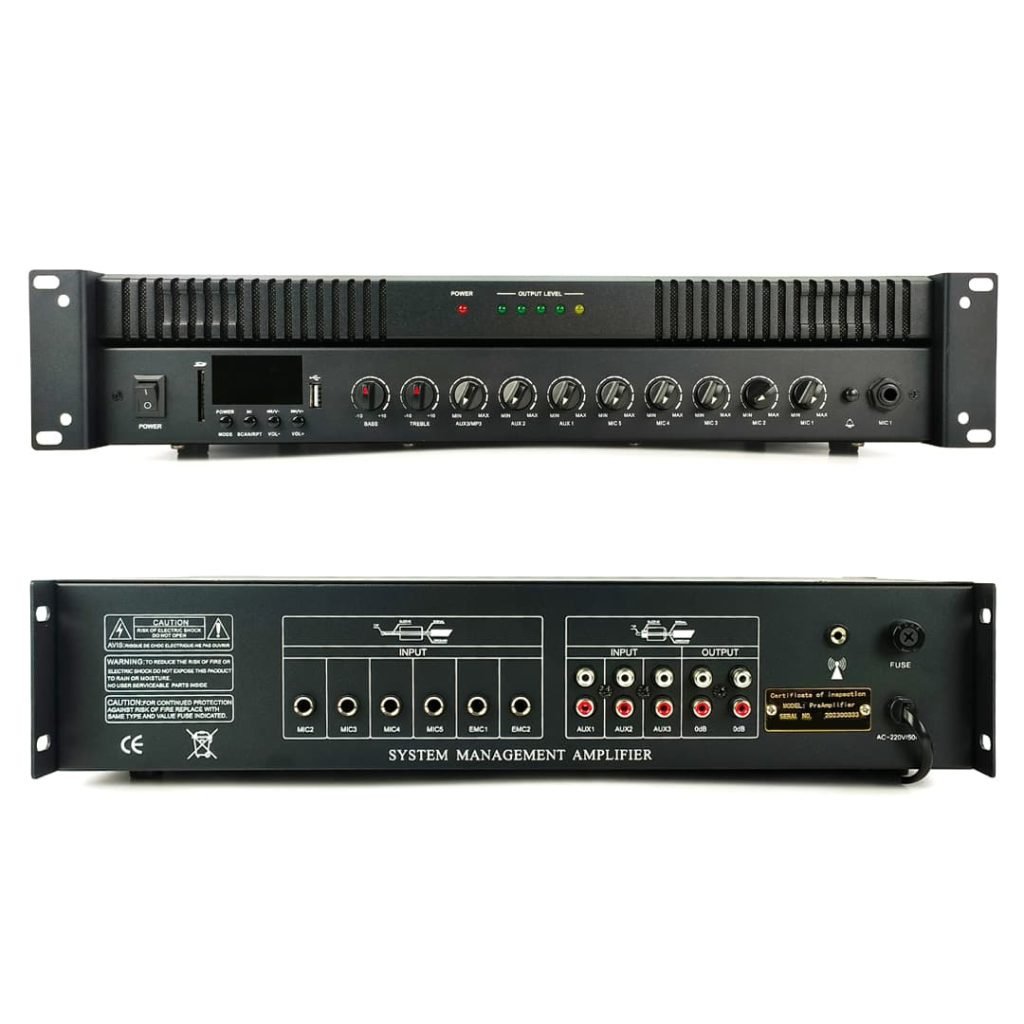

pre class amplifiers

LayviKay Preamplifier

Besides, commercial amplifiers can be categorized into 3 main groups in terms of the design principle of the amplifier.

Analog Signal Amplifiers

Analog signal amplifiers are the most typical audio equipment used in commercial applications. These power amplifiers use transistor-based circuits to amplify audio signals.

An analog signal is a coherent signal that mimics and propagates the waveform of the original signal through a linear, continuous wave (electromagnetic/mechanical). This means that electrical signals are transmitted in a way that “analogizes and mimics the waveform of the original signal,” ultimately allowing speakers to reproduce sound that “mimics the waveform characteristics of the original sound signal.

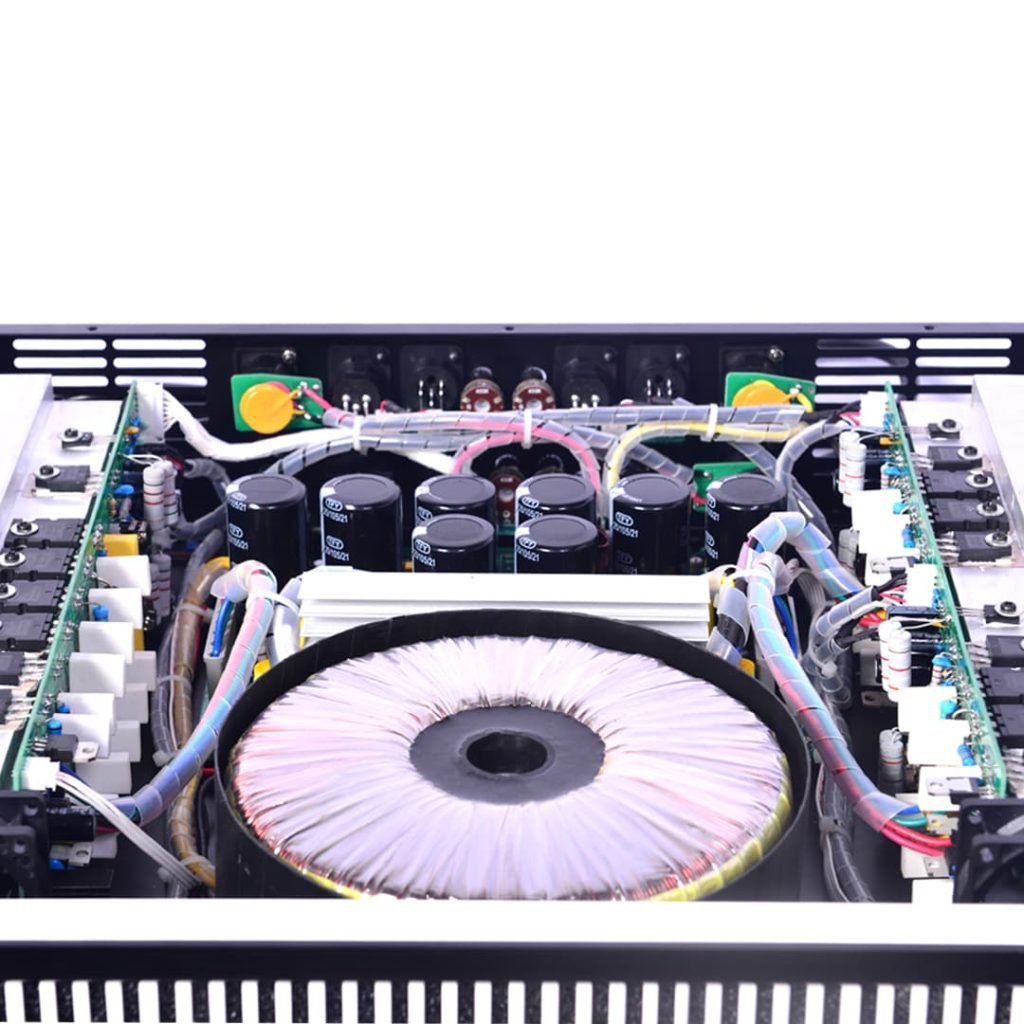

Analog Signal Amplifiers

Analog Signal Amplifier

Tube Amplifiers

The principle of a tube amplifier is mainly to utilize the amplification characteristics of an electron tube to amplify the weak electric signal, and at the same time to achieve the effect of audio amplification through the circuit design. The electron tube plays the role of variable resistance in the circuit, by changing the current size of the electron tube, thus changing its resistance value, to control the signal amplification.

Tube amplifiers provide high quality audio output that retains the detail and dynamic range of the original audio.It is characterized by a warm, natural sound with a large dynamic range. The low-frequency sound is soft and clear, while the high-frequency sound is detailed and clean. It is ideal for audiophiles who need high-fidelity music requirements.

tube amplifier

Tube Amplifier

Digital Amplifiers

The digital amplifier is generally composed of several parts such as a pulse generator, PWM circuit, switching amplifier, and demodulator. It is a kind of equipment that uses digital signal processing technology to convert audio and video signals into current and voltage output, thus realizing audio and video amplification and control. Simply understand that it belongs to the category of Class D amplifier.

Compared with the traditional analog amplifier, the digital amplifier has higher precision, lower distortion, and stronger anti-interference ability. High-end digital amplifier with DSP function, DSP is a digital form of signal analysis, transformation, filtering, detection, modulation, demodulation, and other fast algorithm technology.

class D amplifiers

Digital Amplifier

Function and Role of Commercial Amplifiers

Signal Amplification and Audio Enhancement

The primary function of a commercial amplifier is to amplify audio signals. Boosting the power of the signal, it ensures that the sound produced is strong and clear, allowing every beat and note to shine through. In addition to amplification, these audio amplifiers also enhance the audio quality by minimizing distortions and providing a cleaner, more accurate sound reproduction.

Role of Commercial Amplifiers in Sound Reinforcement Systems

Commercial amplifiers play a crucial role in sound reinforcement systems. Whether it’s a concert, conference, or sporting event, these systems rely on professional power amplifier to distribute sound evenly and at the desired volume. Amplifiers are the backbone of any sound reinforcement setup, ensuring that the audio reaches every corner of the venue, regardless of its size.

Applications and Uses of Commercial Amplifiers

Live Music Venues and Concert Halls

Commercial amplifiers are a crucial component in live music venues and concert halls. They ensure that the sound produced by musical instruments and microphones is amplified and distributed evenly across the venue. Whether it’s a small intimate gig or a large-scale concert, these commercial stage amplifiers help create an immersive and enjoyable experience for the audience.

Recording Studios and Broadcasting Facilities

In recording studios and broadcasting facilities, commercial amplifiers play a pivotal role in capturing and enhancing audio recordings. They provide the necessary power to drive studio monitors and speakers, allowing sound engineers and producers to accurately mix and monitor the recordings. These pro amplifiers help achieve professional-grade sound quality in music production, film, television, and radio broadcasting.

Public Address (PA) Systems in Commercial Spaces

Public address systems are commonly found in commercial spaces such as airports, shopping malls, stadiums, and conference centers. Commercial amplifiers are responsible for amplifying and distributing announcements, music, and other audio content throughout these spaces. These PA amplifiers ensure clear and intelligible sound, enabling effective communication and entertainment for large crowds.

Factors to Consider When Choosing a Commercial Amplifier

Power Output and Wattage

Power output and wattage are important parameters to consider when choosing a commercial amplifier. The power output determines how loud and dynamic the sound can be. Amplifiers with higher wattage ratings can drive larger speakers or cover larger areas with sound. However, it’s essential to match the amplifier’s power output to the needs of the audio system to avoid distortion or damage to the speakers.

Impedance and Speaker Compatibility

Amplifiers have specific impedance ratings, and it’s crucial to match them with speakers of compatible impedance. Impedance is the measure of electrical resistance in an audio system. Using an amplifier with the wrong impedance can result in poor sound quality or even damage to the speakers. So, it’s necessary to ensure that the amplifier and speakers are compatible in terms of impedance.

Audio Quality and Signal-to-Noise Ratio

The audio quality of a commercial amplifier is paramount. Look for amplifiers with low distortion and a high signal-to-noise ratio, as they will produce clean and accurate sound reproduction. A high-quality amplifier can significantly enhance the audio experience and prevent any unwanted noise or interference.

Input and Output Connections

Commercial amplifiers come equipped with various input and output connections to accommodate different audio sources and devices. Common input connections include XLR, RCA, and TRS, while output connections may include Speakon, binding posts, or banana plugs. It’s essential to choose an amplifier that has the right input and output connections for seamless integration with your audio system.

Reliability and Durability

Reliability and durability are key considerations, especially in commercial settings where amplifiers are often subjected to heavy use. Opt for LayviKay brand known for their reliability and build quality. Ensure that the amplifier is built to withstand the demands of your environment and has robust protections against overheating, short circuits, and other potential issues.

For more about the power amplifiers purchasing guide,please visit: https://www.layvikay.com/professional-power-amplifier-purchasing-guide/

Buttons Introduction and Specifications of LayviKay Commercial Amplifiers

Layvikay produces a wide range of models of commercial amplifiers with exciting features. So, you can check out these products in this website and choose the most suitable power amplifier according to your requirements and preferences. Let’s take a look at the features and parameters of the latest models here.

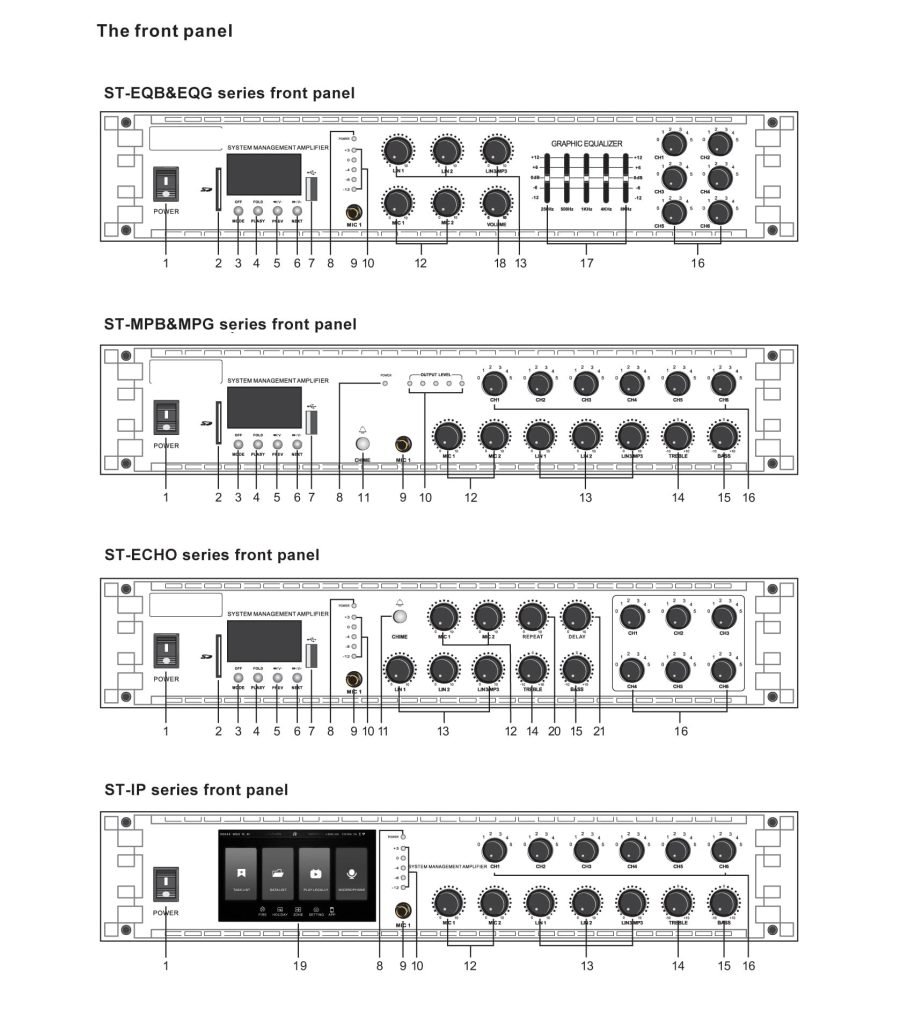

Front Panel Buttons Introduction

power amplifier front introduction

1. Power On/Off
2. SD Card Slot
3. Mode:
Used to select the operating mode of the device, the operating mode cycles in the order of “FM、AUX、MP3、Bluetooth”.
4. Play and Pause:
Short press this button to get the next stored radio station, and long press it to search and store stations automatically.
5. PREV:
Short press this button to go to the previous song, long press this button to lower the volume. In FM mode, press this key briefly to search for stations from high to low.
6. NEXT:
Short press this button to go to the next song, long press this button to higher the volume. In FM mode, press this key briefly to search for stations from low to high.
7. USB
8. Power Indicator
9. MIC 1 Input:
This Microphone has the priority mute function
10. Output Level Indicator
11. Button of Chime
12. Buttons for adjusting the microphone input level
13. Buttons for adjusting the Line and MP3 input level
14. Treble Adjustment
15. Bass Adjustment
16. Individual Adjustment of Each Partition
17. Graphic Equalizer
18. Volume Final Output Adjustment
19. LCD Touch Screen
20. Repeat Button:
Button for adjusting the number of microphone reverb repeats.
21. Delay Button:
Button for adjusting the microphone reverb delay time.

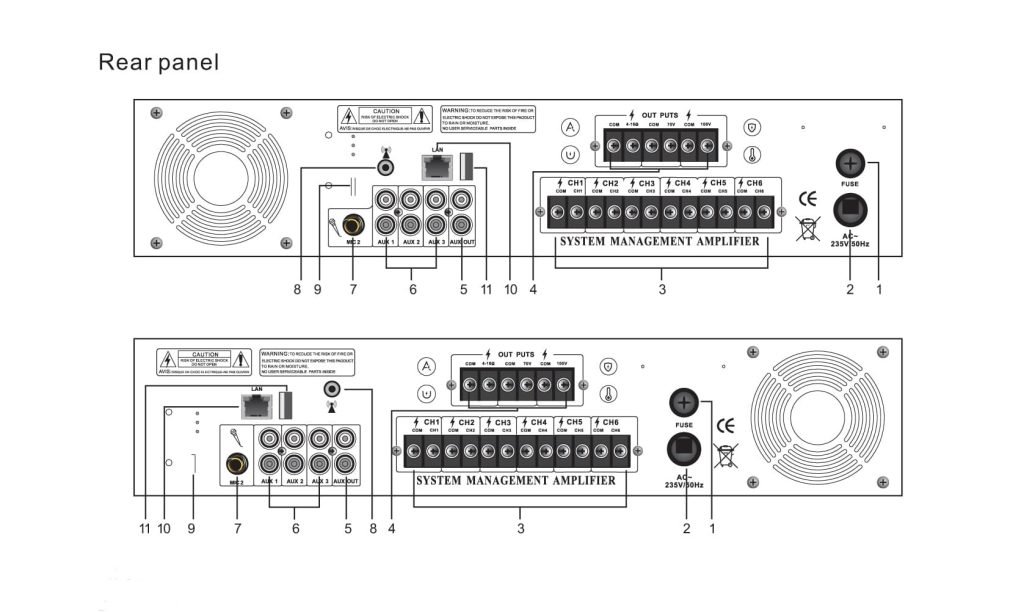

Back Panel Wiring Introduction

power amplifier rear introduction

1. Fuse
2. Power Cord
3. Output Terminal:
Six zoned constant voltage outputs for connection to 100V loudspeakers. The outputs of loudspeakers 1 to 6 can be adjusted by the buttons corresponding to loudspeakers 1 to 6 on the control panel.
4. Three Types of Output Terminal (4-16 Ω /70 V/ 100 V)
5. AUX/ Line Output
6. Aux Line Input
7. Microphone 2 Input
8. 4G Antenna
9. 4G Slot
10. Network Cable Input Port
11. USB Port for Upgrading

Wiring and Maintenance of Commercial Amplifiers

Proper Placement and Ventilation

Correct placement and ventilation of commercial amplifiers are crucial for optimal performance and longevity. Ensure that the amplifier is installed in a well-ventilated area to prevent overheating. Keep it away from sources of heat and avoid placing it in enclosed spaces that restrict airflow. This will help maintain the amplifier’s efficiency and prevent any potential damage.

Wiring and Cable Management

Ensure that all cables are securely connected, properly labeled, and neatly arranged. This not only enhances the overall aesthetic but also minimizes the risk of signal interference and accidental damage to the cables.
For more detail of wiring please visit: https://www.layvikay.com/network-audio-amplifier-guide-tips/

Routine Cleaning and Troubleshooting

Dust and debris can accumulate over time, potentially affecting the performance and lifespan of the amplifier. Make sure to follow Layvikay User Manual guidelines for cleaning and perform routine inspections to identify any potential issues. Prompt troubleshooting and professional repairs can help address problems before they worsen.

Future of Our Commercial Amplifiers

The field of commercial amplifiers is constantly evolving and Layvikay is developing more advanced technologies for use in amplifiers, such as more efficient power management, improved audio processing algorithms and enhanced digital connectivity options. We expect Layvikay commercial amplifiers to deliver even better performance in the near future.
