60x60 led panel

LED Panel 60x60 cm (Back-lit 2 by 2 feet)

LayviKay LED panel 60×60 cm fits perfectly into standard ceiling grilles, making it easy to install and replace existing fluorescent fixtures.

Sleek and modern in design, this panel light is both functional and aesthetically pleasing, utilizing a high-end LED chip and driver power supply with a life expectancy of over 50,000 hours.

It also features a high color rendering index (CRI) of 80+ and offers customize color temperature options ranging from 2800K to 6500K, allowing you to create the perfect ambiance for any space.

Ideal for offices, schools, hospitals, retail spaces and more, this LED panel light is the perfect lighting solution for commercial or residential spaces.

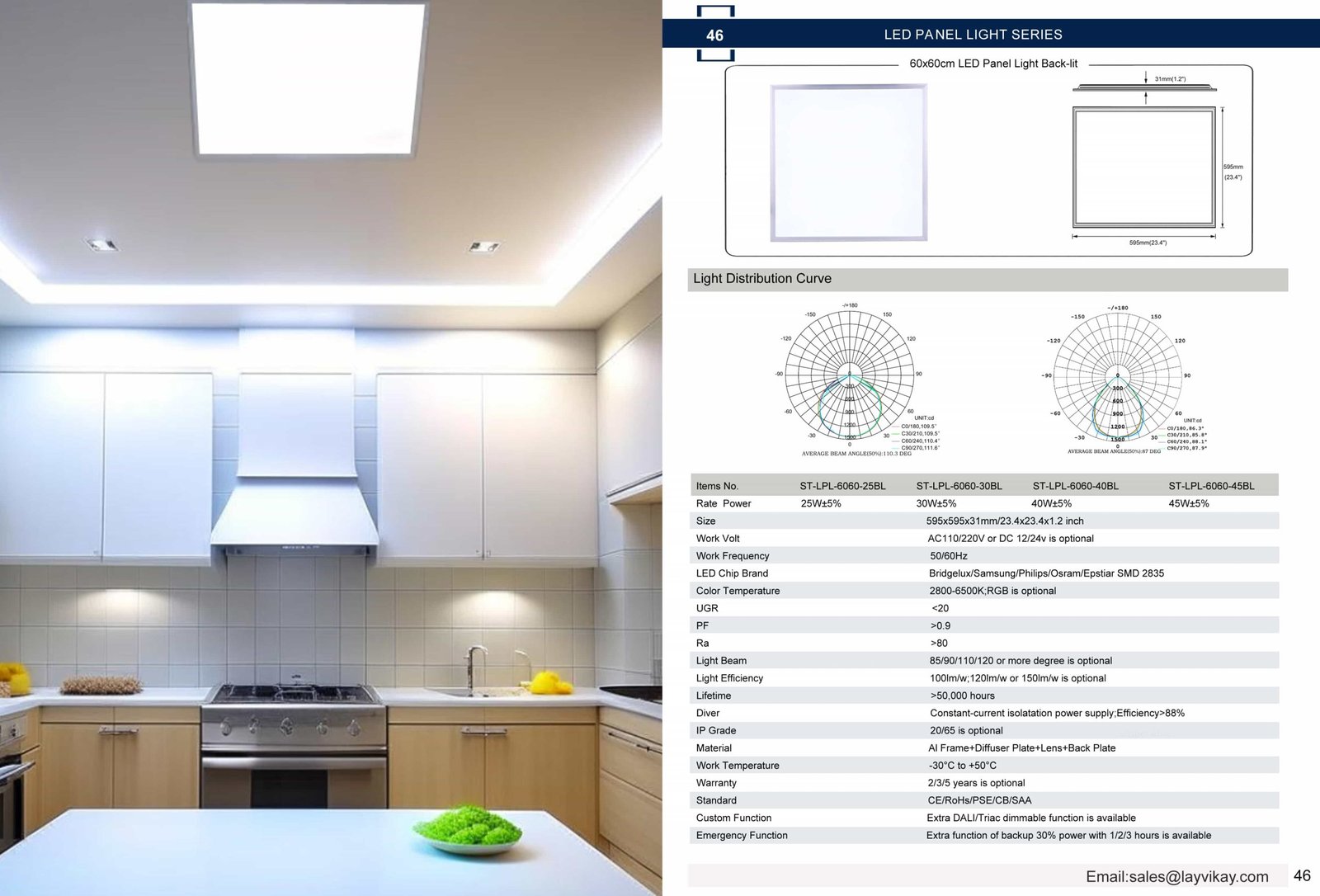

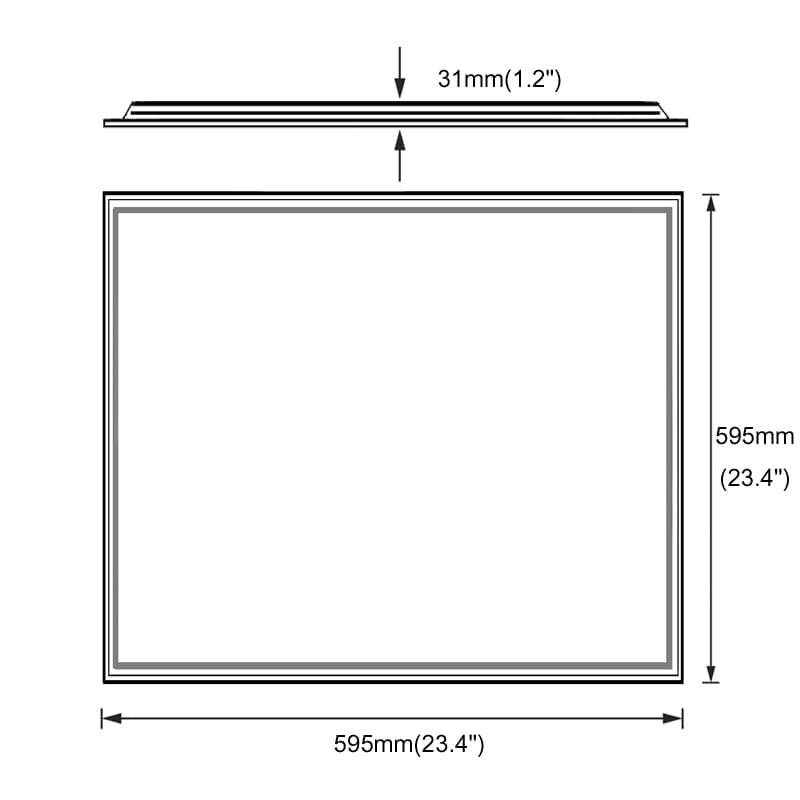

Parameters of LED Panel 60x60

ModelWattageVoltageCCTLight EfficiencyCRIMetric SizeFt Size
ST-LPL-6060-25BL25WAC 110/220V2800-6500K110/150/170 LM/W(Ra)>80595x595MM2'x2'
ST-LPL-6060-30BL30WAC 110/220V2800-6500K110/150/170 LM/W(Ra)>80595x595MM2'x2'
ST-LPL-6060-40BL40WAC 110/220V2800-6500K110/150/170 LM/W(Ra)>80595x595MM2'x2'
ST-LPL-6060-45BL45WAC 110/220V2800-6500K110/150/170 LM/W(Ra)>80595x595MM2'x2'

Size & Price

Different order quantities, shipping methods and parameter requirements will be different prices, please contact our sales for an accurate quotation.

More Details of LED Panel 60x60 cm

  1. AL Frame(6063 Al)
  2. Diffuser Plate:PC/ Acrylic (PMMA) or PS is optional
  3. LED Beads+ Lens+PCB(high thermal conductivity aluminum substrate)
  4. Back Plate: Metal Material, 2.5-3 mm thickness.

Led Driver: Over-voltage, over-current, anti-surge protection brand isolated external driver

led panel light back-lit construction

Best LED panel 60x60 cm for Your Next Project

led panel 60x60 cm application
LED panel light in school

Explore More Features of LED Panel 60x60

What is an LED Panel 60x60?

An LED Panel 60x60 is a square-shaped LED lighting fixture that measures 60 cm by 60 cm (approximately 24 inches by 24 inches).

These LED panel lights provide uniform and energy-efficient lighting for various indoor spaces.

Where can I install this LED Panel light?

This LED panel light is suitable for various indoor environments, such as offices, schools, hospitals, retail stores, and residential spaces. They can be installed in ceiling grids, surface-mounted, or suspended, depending on the specific product and installation requirements.

How do I clean and maintain my LED Panel ?

To clean an LED Panel 60x60, turn off the power and gently wipe the surface with a soft, damp cloth. Avoid using abrasive materials or harsh chemicals that could damage the panel. Maintenance typically involves occasional cleaning and checking for any loose connections or damaged components.

What are the benefits of using this LED Panel ?

Some benefits of using an LED Panel 60x60 cm include energy efficiency (110+ lm/w), long lifespan (50,000+ hours), uniform light distribution, low heat emission, and minimal maintenance.

They are also available in different color temperatures (RGB and customized color temperature) and designs, making them suitable for various applications.

Can a 60x60 LED panel light be dimmed?

Yes, a 60x60 LED panel light can be dimmed. LED panel lights are designed to be highly versatile and energy-efficient, and most modern models come with dimming capabilities. There are a few different methods for dimming LED panel lights:

1. 0-10V Dimming:

This is a common dimming method that uses a separate 0-10V control wire to adjust the brightness of the LED panel.

2. DALI Dimming:

Digital Addressable Lighting Interface (DALI) is a digital communication protocol that allows for individual control and dimming of LED panels in a lighting system.

3. DMX Dimming:

DMX (Digital Multiplex) is another digital communication protocol commonly used in stage lighting and can be used to control and dim LED panels.

4. Wireless Dimming:

Some LED panels can be dimmed using wireless protocols like Zigbee or Bluetooth, which allow for control via a smartphone app or a wireless remote.

5. Phase Dimming:

This method uses a phase-cut dimmer to control the brightness of the LED panel by cutting off part of the AC waveform.

It's important to note that not all LED panels support all dimming methods, so it's crucial to check the specifications of the specific panel you are using to determine which dimming options are available.

These are our customized features, please contact our sales team for a more detailed proposal.

What is the lifespan of a 60x60 LED panel light?

The lifespan of a 60x60 LED panel light typically depends on several factors, including the quality of the LED chips, the design and components used, and the operating conditions. However, most high-quality LED panel lights have an estimated lifespan ranging from 50,000 to 10,000 hours or more.

Here are some additional details:

1. LED lifespan rating:

LED manufacturers usually rate the lifespan of their LEDs based on the number of hours until the light output drops to 70% of the initial brightness (known as L70 rating). A good quality LED panel light should have an L70 rating of at least 50,000 hours. For more details about this please visit this article: https://www.layvikay.com/all-need-to-know-about-lifespan-in-your-led-lighting-projects/

2. Heat dissipation:

Proper heat dissipation is crucial for prolonging the lifespan of LED lights. LED panel lights with effective heat sinks and thermal management systems can help dissipate heat more efficiently, reducing the stress on the LEDs and extending their lifespan. You can get more information about this: https://www.layvikay.com/some-essential-elements-of-cost-effective-heat-sink/

3. Operating hours:

The lifespan of an LED panel light is also affected by the number of hours it is used per day. If the light is used continuously (24 hours a day), it will have a shorter lifespan compared to being used for fewer hours per day.

4. Quality of components:

The quality of the LED chips, drivers, and other components used in the panel light can significantly impact its lifespan. Higher-quality components tend to have better performance and longer lifespans.

5. Operating environment:

Factors such as temperature, humidity, and exposure to vibrations or impacts can affect the lifespan of an LED panel light. Harsh environments may shorten the lifespan, while controlled environments can extend it.

In general, a well-designed and high-quality 60x60 LED panel light from a reputable manufacturer can have a lifespan of 30,000 to 50,000 hours or more, which translates to approximately 5 to 10 years of use if operated for 8 hours per day. However, it's always best to check the manufacturer's specifications and ratings for the specific product you're considering.

How do I choose the right 60x60 LED panel light for my application?

To choose the right 60x60 LED panel light for your application, consider the following factors:

1. Brightness:


The brightness of an LED panel light is measured in lumens. Determine the appropriate lumen output based on the size of the room, the ceiling height, and the intended purpose of the space. For example, a typical office space may require 3000-4000 lumens for a 60x60 LED panel light, while a conference room or classroom might need a higher lumen output.

2. Color Temperature:


Color temperature is measured in Kelvin (K) and indicates the warmth or coolness of the light. Choose a color temperature that suits your space and preferences:

  • 2700K-3000K: Warm white, ideal for residential spaces, bedrooms, and living rooms.
  • 3500K-4000K: Natural or neutral white, suitable for offices, classrooms, and commercial spaces.
  • 5000K-6500K: Cool white or daylight, often used in hospitals, retail stores, and areas requiring high visibility and focus.

Color Rendering Index (CRI):

The CRI is a measure of how accurately a light source reveals the true colors of objects compared to natural daylight. A higher CRI (closer to 100) indicates better color rendering. For most applications, a CRI of 80 or above is acceptable, but for tasks requiring color accuracy, such as graphic design or makeup application, look for a CRI of 90 or higher.

Dimming Compatibility:

If you plan to use a dimmer switch with your LED panel light, ensure that the panel is dimmable and compatible with the dimmer switch you intend to use. Some LED panel lights may require specific dimmer switches or drivers to work properly.

Energy Efficiency:

Look for LED panel lights with high energy efficiency, typically measured in lumens per watt. Energy-efficient panels will help you save on electricity costs over time. Additionally, consider choosing products certified by organizations like Energy Star, which ensures they meet strict energy efficiency guidelines.

Quality and Lifespan:

Choose LED panel lights from reputable manufacturers to ensure high-quality materials and construction. A good-quality panel should have a lifespan of at least 50,000 hours.

Mounting Options:

Ensure that the LED panel light you choose is suitable for your ceiling type and installation preferences. Most 60x60 LED panel lights are designed for surface mounting or suspension, but some may also be compatible with recessed installations.

By considering these factors, you'll be able to find the right 60x60 LED panel light for your specific application and enjoy energy-efficient, high-quality lighting.

You can get more information visit this article: https://www.layvikay.com/led-panel-lights-a-basic-guide-before-bulk-purchasing/

What is the difference between a 60x60 LED panel light and an LED downlight?

A 60x60 LED panel light and an LED downlight are both popular choices for lighting solutions, but they have some key differences in terms of design, installation, and application. Here's a comparison to help you understand the differences between the two:

1. Design:


LED panel lights are flat, square, or rectangular light fixtures with a sleek and modern appearance. They typically have an edge-lit or back-lit design, where LEDs are placed along the edges or at the back of the light guide plate. This design allows for a uniform and glare-free light distribution. In contrast, LED downlights are typically round and recessed, with the LED bulb or module housed within a can or housing that is installed directly into the ceiling.

2. Installation:


LED panel lights are usually surface-mounted or suspended, making them suitable for drop ceilings or areas where access to the ceiling is limited. They are often used in grid ceilings, replacing traditional fluorescent troffers. On the other hand, LED downlights are installed directly into the ceiling, requiring a cutout for the housing. They are ideal for new constructions or renovations where the ceiling is accessible.

3. Application:


LED panel lights are primarily used in commercial spaces, such as offices, schools, hospitals, and retail stores, where even and consistent lighting is essential. They are also suitable for residential applications, such as basements, workshops, or garages, where task lighting is required. LED downlights, however, are more versatile and can be used in various settings, including living rooms, kitchens, bathrooms, and hallways. They are ideal for accent lighting, task lighting, and general ambient lighting.

4. Light distribution:


LED panel lights provide uniform and diffused light, making them ideal for tasks that require minimal glare and shadow. They are often used for general lighting purposes in commercial spaces. LED downlights, on the other hand, offer directional light, which can create focused beams or accent lighting in specific areas.

In summary, the choice between a 60x60 LED panel light and an LED downlight will depend on the specific application, design preferences, and lighting requirements. LED panel lights are ideal for commercial settings and areas requiring uniform and glare-free lighting, while LED downlights are suitable for various residential and commercial applications that require directional or accent lighting.

How does the brightness of this LED panel compare to other lighting options?

The brightness of LED panel light 60x60 can vary quite a bit compared to other lighting options. Here's a general comparison:

Brightness:

- 60x60 LED panels are available in a very wide range of brightness levels measured in lumens.
- They can range from around 2500 lumens for basic 25W small panel lights up to 4500+ lumens for very high brightness 45W large panel lights.
- This gives them the flexibility to provide brightness comparable to anything from a traditional fluorescent light to a high-intensity commercial lighting fixture.

Compared to other options:

- They can match or exceed the brightness of fluorescent lamp while using less energy.
- They provide more consistent light levels compared to incandescent or halogen sources.
- High-end LED panels can meet or surpass HID or high-intensity discharge lighting brightness.

So in summary,  60x60 LED panels cover a very wide range allowing them to match or outperform most other lighting technologies in terms of brightness. when specified correctly for the application.

LED Panel 60x60 Purchase Guide 2024

As you embark on choosing the right LED panel 60×60 cm for your needs, it’s essential to understand your specific requirements and consider the nuances that come with this popular lighting option. This guide aims to be your ultimate companion, shedding light on the crucial considerations, latest trends, and little-known facts about these panels to help you make a well-informed purchase decision.

Why LED Panel 60x60 cm

LED panel lights have witnessed a surge in popularity over the past decade, thanks to their energy efficiency, long lifespan, and cost-effectiveness. They've become a versatile lighting solution, catering to a wide range of spaces and purposes. Among the various LED panel sizes, the 60x60 cm form factor stands out as a common favorite. These panels are widely used across commercial, industrial, and residential settings, offering a sleek and modern lighting option.

These panels are an upgrade from traditional fluorescent fixtures, offering better illumination and a longer lifespan. They're an ideal solution for those seeking a future-proof lighting system, thanks to their energy savings and low maintenance requirements.

Understanding Your Needs

Understanding your specific lighting needs is crucial when selecting the right LED panels. Consider the purpose of the lighting—is it for general room illumination, task lighting, or accent lighting? Do you require a bright and functional light for your office space, or a warmer and more ambient light for a cozy atmosphere? Assessing your lighting purposes will help you determine the right features and specifications to look for.

Space constraints are another vital consideration. The 60x60 cm size is versatile, but you should ensure the panels fit harmoniously into the designated space. Measurements and clearance considerations are essential to ensure a seamless fit. Also, consider any specific design or aesthetic preferences you have. LED panels come in various designs, edge-lit, back-lit, and others, each offering a distinct visual appeal.

Key Considerations

Lumens and Brightness

Lumens are a critical factor in determining the brightness of your LED panels. Unlike traditional wattage measurements, lumens provide a more accurate indication of a panel's light output. For ample lighting, aim for panels with a lumen output of around 4000 lumens or more. This should provide sufficient brightness for most general lighting purposes.

If you're seeking a darker, more intimate ambiance, you might consider panels with a lower lumen output, say, around 2000 lumens. Keep in mind that lumens aren't just about brightness; they also impact the intensity and atmosphere of a space. Consider the height of the ceiling and the size of the room—higher ceilings and larger spaces may require more lumens to achieve the desired level of illumination.

Color Temperature Options

Color temperature is another essential consideration, as it greatly affects the ambiance and feel of a space. LED panels come in various color temperatures, typically measured in Kelvin (K). The common options range from cool white (around 6000K), which creates a bright and vibrant atmosphere, to warm white (around 3000K), which provides a more traditional and cozy feel.

Neutral white (around 4000K) is a happy medium, offering a balanced and versatile lighting option suitable for most spaces. Consider the purpose and mood you want to evoke in the space, as this will help you choose the right color temperature. For instance, a retail store might benefit from cooler color temperatures to create a vibrant and inviting atmosphere, while a restaurant might prefer a warmer, more relaxed ambiance.

Light Efficiency

Light efficiency is a significant advantage of LED panels, and it's a key factor to consider when selecting your panels.

Choosing high light efficient LED panels is not only beneficial for the environment but also for your wallet, as they can significantly reduce your energy bills.

Consider the panels' wattage and compare it with their lumen output to assess their light efficiency. A higher lumen output per watt indicates a more efficient panel.

Dimmable Features

Dimmable LED panels offer increased flexibility and energy savings. The ability to adjust the light intensity provides a customized and moodsetting that suits different occasions and preferences.

If you're considering dimmable panels, ensure your space is set up with the necessary dimming system. There are two common types of dimming protocols: analog and digital. Analog dimming uses a triac dimmer to vary the intensity, while digital dimming offers more precise control through protocols like DALI (Digital Addressable Lighting Interface) or 0-10V dimming.

Lifespan and Warranty

LED panels boast a long lifespan, typically lasting many years longer than traditional fluorescent or incandescent bulbs. Consider panels with a lifespan of 50,000 hours or more, ensuring extended usage and reducing the need for frequent replacements.

Warranty coverage varies among manufacturers. Aim for products with a comprehensive warranty that covers defects or malfunctions. A longer warranty period indicates the manufacturer's confidence in their product and provides added peace of mind.

Color Rendering Index

The Color Rendering Index (CRI) is a critical factor when considering LED panels' color accuracy. The CRI measures how accurately a light source represents the colors of various objects compared to natural sunlight. A high CRI value indicates that the colors displayed under the lighting conditions closely resemble those seen in natural daylight.

For most applications, choosing LED panels with a CRI of 80 or above is recommended. This ensures a relatively accurate representation of colors. However, in spaces where color accuracy is paramount, such as retail stores or art galleries, aim for panels with a CRI of 90 or higher. A high CRI is particularly important when trying to achieve true-to-life color representation.

Budget and Quality

LED panels vary significantly in price, with options available across a wide range of budgets. While cost is an important consideration, it's crucial not to compromise on quality in the pursuit of a lower price. Striking the right balance between cost and quality ensures you obtain reliable and durable panels.

If you don't know how to identify the quality, please first learn the basic knowledge and parameters of lighting fixtures. Please refer to this article: https://www.layvikay.com/what-are-the-key-parameters-in-choosing-lighting-fixtures/

Installation

LED panels are relatively easy to install, but seeking guidance from a qualified electrician is recommended, especially if you're installing them yourself for the first time. Common mounting methods include surface mounting, hanging, or recessing the panels into the ceiling. Each method has its requirements, so assessing the space and considering the appropriate installation technique is vital.

Lastly, always stay informed about the latest trends and advancements in LED lighting. Our professional sales team can provide valuable insights, allowing you to explore different options and find the perfect LED panel solution for your spaces.
